socketstyles
| Socket |
|

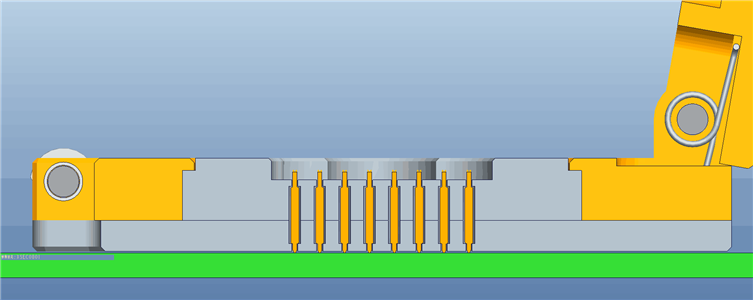

Clamshell |
| Clamshell |

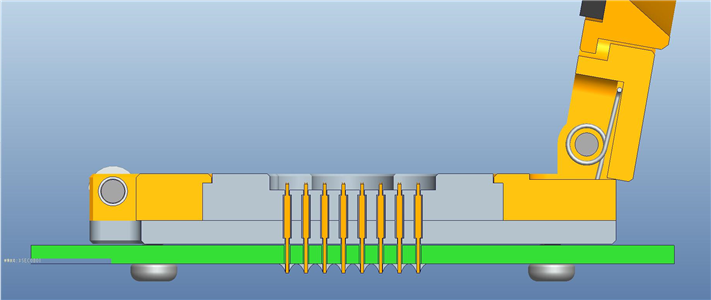

Welding |
 |
| Non-Welding |
 |

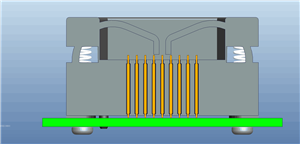

| Open Top |

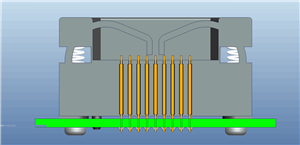

Welding |
 |
| Non-Welding |
 |
|
| What products does Allsocket make? |
|
| Item |
Description |
| Socket |
BGA, CSP, LGA, QFN, DFN, PLCC, CLCC, QFP, Universal and special Packages |
| Test Jig |
Mobile, Tablet, PC, Display, Set-Top Box(STB), Car DVR, Graphics card, Wireless Lan Driver, Sound Driver, MODEM, Module(Camera, Optical, WIFI, Bluetooth, Connector, etc), etc |
| Test Subject |
CPU, Bridge, GPU, DDR, LPDDR, FLASH, EMMC, EMCP, UFS, MEMORY, Diode, Transistor, Clock/Timing, Embedded, Interface, Linear, Logic, PMIC, ASIC, RF, Sensor, Crystal, Mens, etc |
| FPC, FPC Connector, Module(Camera, Optical, WIFI, Bluetooth, Connector, etc), etc |
| See more test subjects Click here
Chip
die
Module
Electronic Component
|
| Custom Socket for Different Packages |
|
| Socket |
Lid Type |
Pitch
(mm) |
Pin Count |
Outline |
BGA
CSP
LGA
|
Clamshell |
0.2-1.27
other size |
2-3600
≥3600 |

|
| PGA |
Clamshell |
1.0-1.27
other size |
2-3600
≥3600 |
|
QFN
DFN
LCC |
Clamshell |
0.3-1.27
other size |
2-352
≥352 |
|
| QFP |
Clamshell |
0.3-1.27
other size |
32-352
≥352 |
|
| TSOP |
Opentop
Clamshell |
0.5,1.0
other size |
48/56/66 |
|
| SOP/SSOP/TSSOP |
Opentop
Clamshell |
0.65,1.27
other size |
8-34
≥34 |
|
| FPC |
Opentop
Clamshell |
0.2-1.27
other size |
2-100
≥100 |
 |
| Irregular Package |
Clamshell |
≥0.15 |
custom-made |
Chip
Module
Electronic components
|
| More Packages |
See more test subjects Click here
|
| Socket |
Lid Type |
Pitch
(mm) |
Grid Size (AxB) |
Pin Count (Max) |
Outline |
| ASS51 series |
Clamshell
(manually) |
0.4
0.5
0.65
0.8
1.0
1.3 |
29x34
22x30
18x22
15x17
11x16
9x11 |
986
660
396
255
176
99 |
 |
| ASS52 series |
Clamshell
(manually) |
0.5
0.8
1.0 |
31x31
26x26
16x16 |
961
676
256 |
|
| ASS53 series |
Clamshell +
Knob
(manually) |
0.4
0.5
0.65
0.8
1.0
1.27 |
46x46
41x41
32x32
23x23
30x30
22x22 |
2116
1681
1024
676
900
484 |
 |
| ASS54 series |
Clamshell +
Knob
(manually) |
0.4
0.5
0.65
0.8
1.0
1.27 |
46x46
41x41
32x32
26x26
30x30
22x22 |
2116
1681
1024
676
900
484 |
 |
| ASS55 series |
Clamshell
(manually) |
0.4
0.5
0.65
0.8
1.0
1.27 |
46x46
41x41
32x32
26x26
30x30
22x22 |
2116
1681
1024
676
900
484 |
 |
