Home > Products > Test & Burn-in Socket > QFP32-0.5-SCL
QFP32-TQFP32-LQFP32 Socket IC51-0324-805 Socket QFP32-0.5-SCL Socket High quality IC Test & burn-in socket for QFP32/TQFP32/LQFP32 package 15
  • QFP32-TQFP32-LQFP32 Socket IC51-0324-805 Socket QFP32-0.5-SCL Socket High quality IC Test & burn-in socket for QFP32/TQFP32/LQFP32 package 15

QFP32-0.5-SCL
Test & burn-in socket

SKU: SCL-QFP32-0.5

Price & file please inquire
Instant response within 60 min.
Sale team:
Sales(@)allsocket.com

Socket life

  • Mechanical life/times: 15,000 cycles AllSOCKET
  • Mechanical life/times: 15,000 cycles IC51-0324-805



QFP32-0.5-SCL-IC51-0324-805-Test & burn-in socket
QFP32-0.5-SCL
QFP32-0.5-SCL-IC51-0324-805-Test & burn-in socket
QFP32-0.8-SCL
QFP32-0.5-SCL-IC51-0324-805-Test & burn-in socket
QFP32-0.5-SCL
QFP32-0.5-SCL-IC51-0324-805-Test & burn-in socket
QFP32-0.8-SCL

Socket Customizable Freq.Max Test Pitch Pins Op.Temp. Construction Installation Mechanical life
SCL-QFP32-0.5 no MCU 0.5 32 -55 ~ +175 Clamshell Soldering 15,000 cycles

1QFP32-0.5-SCLSocket 2QFP32-0.5-SCLSocket

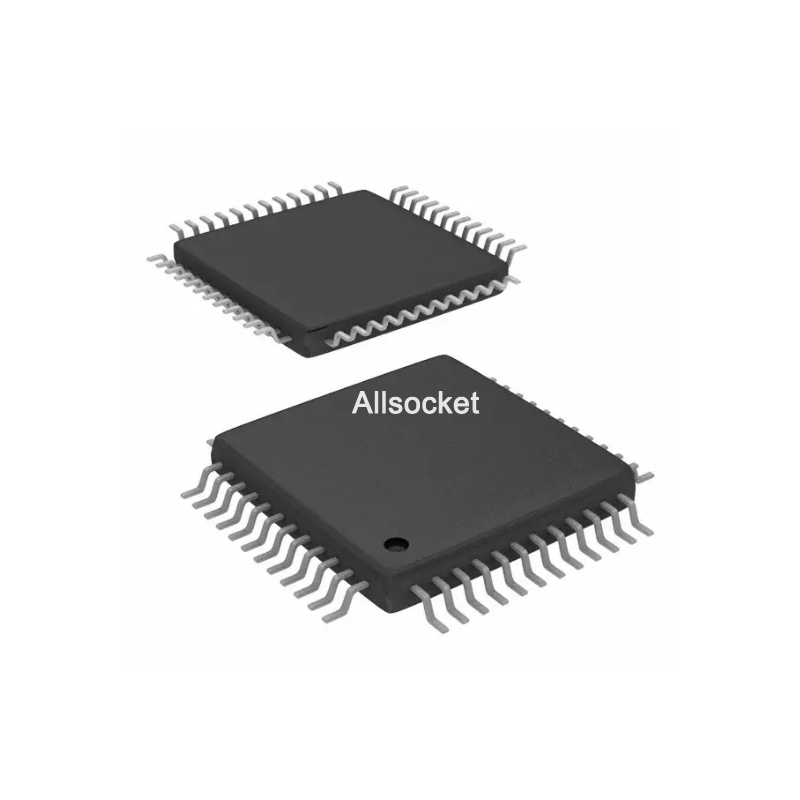

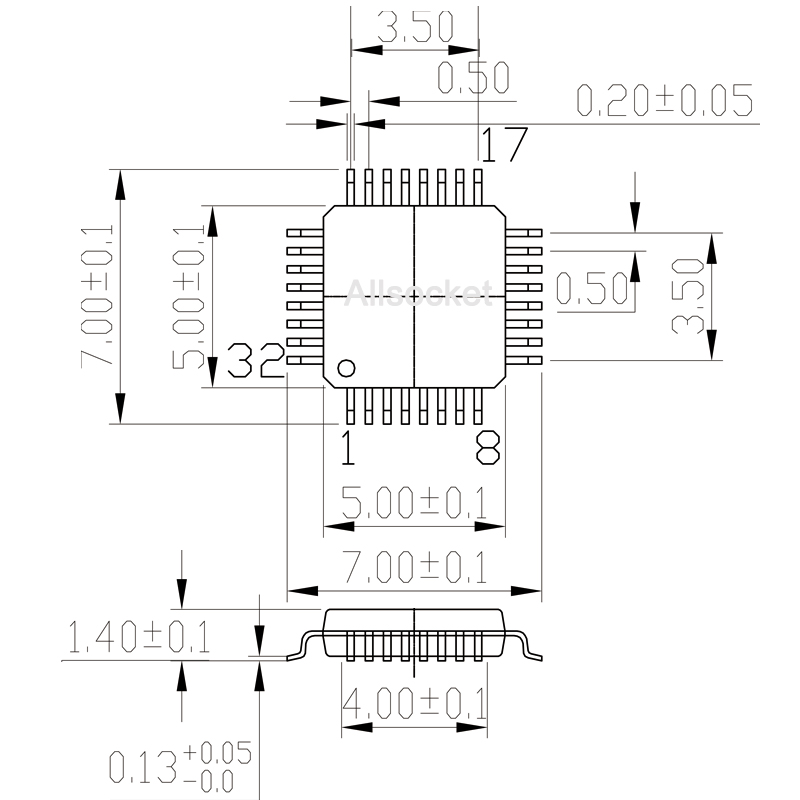

Supported Package

  • QFP32
  • TQFP32
  • LQFP32
  • Socket life

    • Mechanical life/times: 15,000 cycles AllSOCKET
    • Mechanical life/times: 15,000 cycles IC51-0324-805

    Material & Specifics:

  • Structure: Clamshell
  • Socket Body: PEI
  • Contacts: Beryllium Copper Alloy
  • Contact Plating: Gold over nickel
  • Operation Force: Max 2.0kg
  • Contact Resistance: Max 50 mohm
  • Insulation Resistance: 1,000 mohm min. at DC 500V
  • Dielectric withstanding voltage For 1 Minute at AC 700V
  • Current: Max 2A
  • Operation Temperature: -55 ~ +175 Celsius degree
  • Operation Life: 15,000 cycles(Mechanical)
  • Use method:

  • Assemble to be an adapter
  • Assemble onto a test board
  • Assemble and make a test jig
  • QFP32-0.5-SCLSocket

    Video:

    QFP32-0.5-SCL, QFP32,

    Datasheet:

    DWG DXF 3D:
