Home > Products > Test & Burn-in Socket > QFP44-0.8-STP
QFP44-TQFP44-LQFP44 Socket OTQ-44-0.8-14 Socket QFP44-0.8-STP Socket High quality IC Test & burn-in socket for QFP44/TQFP44/LQFP44 package 20
  • QFP44-TQFP44-LQFP44 Socket OTQ-44-0.8-14 Socket QFP44-0.8-STP Socket High quality IC Test & burn-in socket for QFP44/TQFP44/LQFP44 package 20

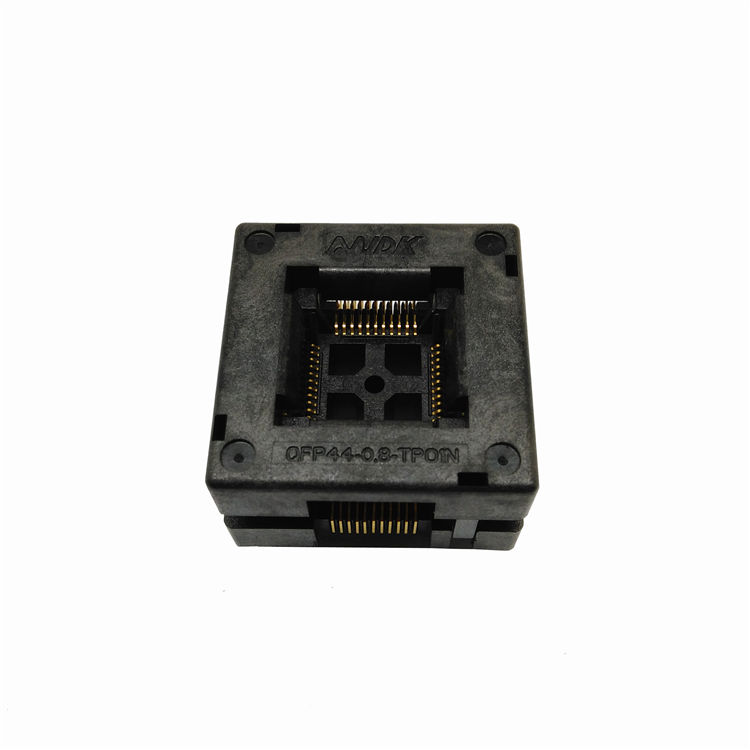

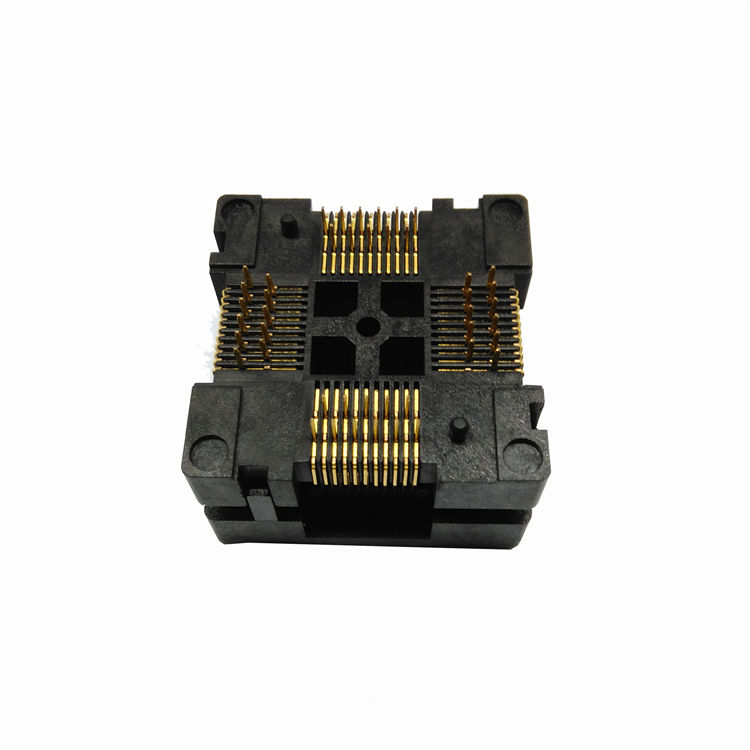

QFP44-0.8-STP
Test & burn-in socket

SKU: STP-QFP44-0.8

Price & file please inquire
Instant response within 60 min.
Sale team:
Sales(@)allsocket.com

Socket life

  • Mechanical life/times: 15,000 cycles AllSOCKET
  • Mechanical life/times: 15,000 cycles OTQ-44-0.8-14



QFP44-0.8-STP-OTQ-44-0.8-14-Test & burn-in socket
QFP44-0.8-STP

Socket Customizable Freq.Max Test Pitch Pins Op.Temp. Construction Installation Mechanical life
STP-QFP44-0.8 no MCU 0.8 44 -55 ~ +175 Opentop Soldering 15,000 cycles

1QFP44-0.8-STPSocket 2QFP44-0.8-STPSocket

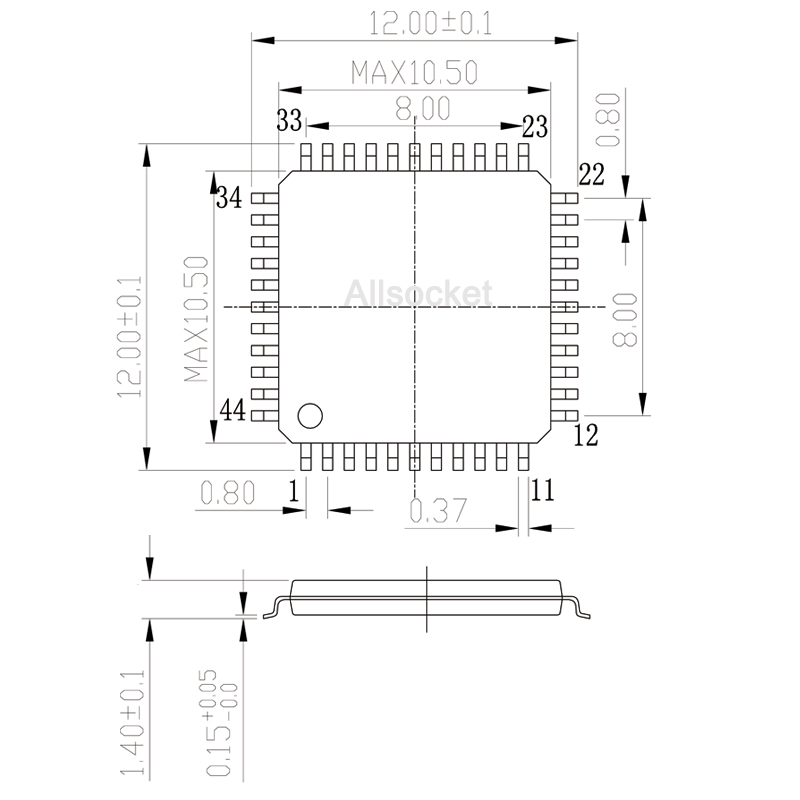

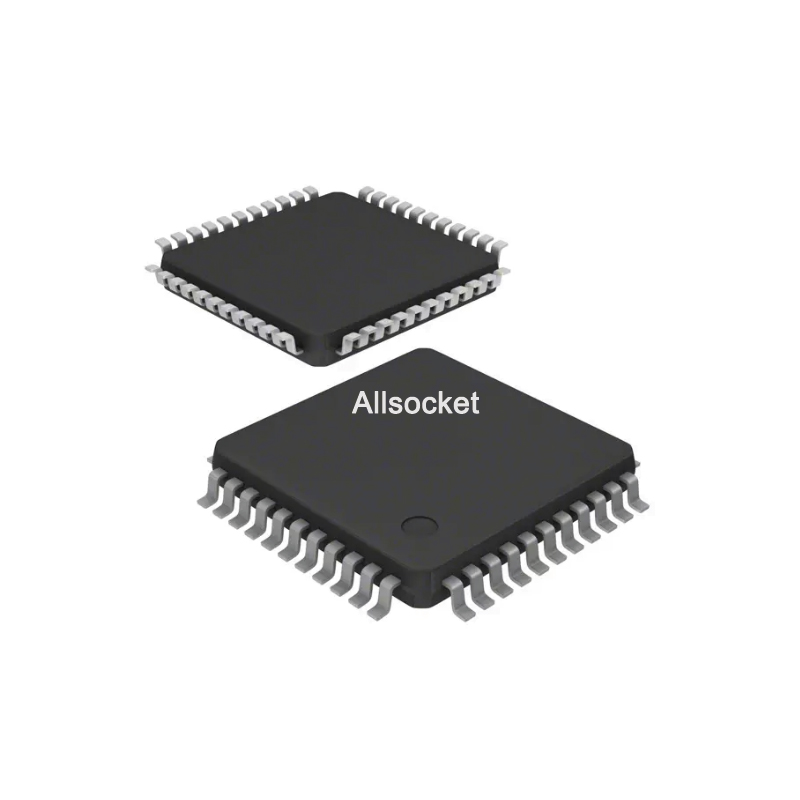

Supported Package

  • QFP44
  • TQFP44
  • LQFP44
  • Socket life

    • Mechanical life/times: 15,000 cycles AllSOCKET
    • Mechanical life/times: 15,000 cycles OTQ-44-0.8-14

    Material & Specifics:

  • Structure: Opentop
  • Socket Body: PEI
  • Contacts: Beryllium Copper Alloy
  • Contact Plating: Gold over nickel
  • Operation Force: Max 2.0kg
  • Contact Resistance: Max 50 mohm
  • Insulation Resistance: 1,000 mohm min. at DC 500V
  • Dielectric withstanding voltage For 1 Minute at AC 700V
  • Current: Max 2A
  • Operation Temperature: -55 ~ +175 Celsius degree
  • Operation Life: 15,000 cycles(Mechanical)
  • Use method:

  • Assemble to be an adapter
  • Assemble onto a test board
  • Assemble and make a test jig
  • QFP44-0.8-STPSocket QFP44-0.8-STPSocket QFP44-0.8-STPSocket QFP44-0.8-STPSocket QFP44-0.8-STPSocket

    Video:

    QFP44-0.8-STP, QFP44,

    Datasheet:

    DWG DXF 3D:

    • DWG is unavailable now. Please contact sales, thank you.
    • DXF is unavailable now. Please contact sales, thank you.
    • STP is unavailable now. Please contact sales, thank you.
