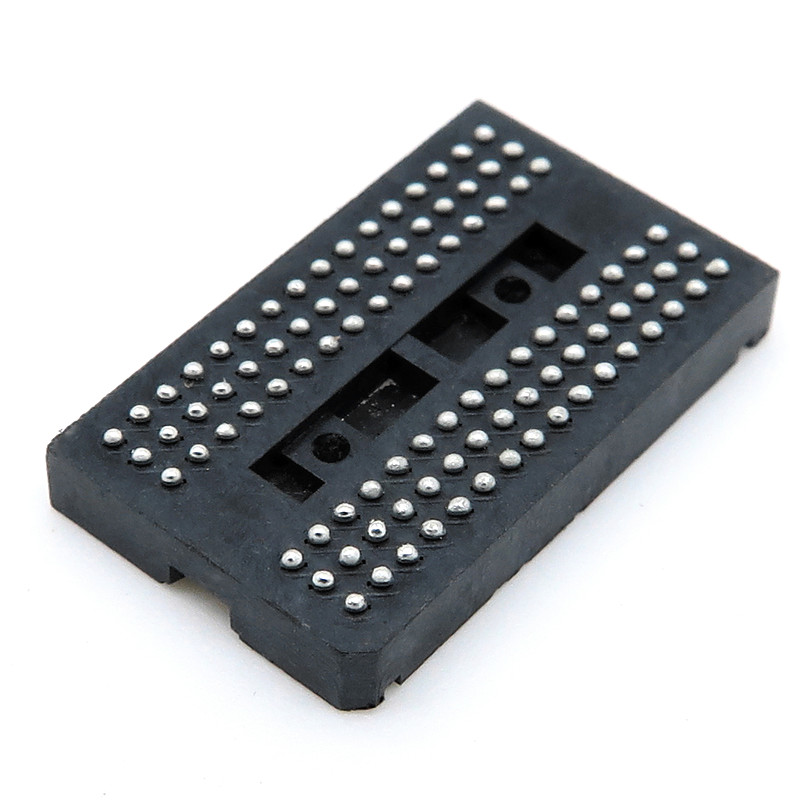

Socket	Customizable	Freq.Max	Test	Pitch	Pins	Op.Temp.	Construction	Installation	Mechanical life
S-DDR96-0.8-OPU	yes	5Ghz	DDR1/2/3/4 x8 x16	0.8	96	-55 ~ +175	Opentop	SMT	50,000 cycles

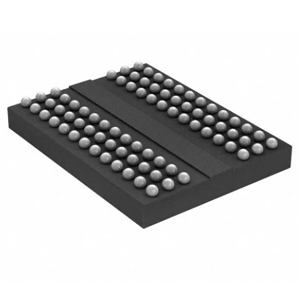

Supported Package

BGA/DDR96

FBGA(7.5x10.6)
FBGA(7.5x11.1)
FBGA(7.5x12.5)
FBGA(8x10.5)
FBGA(8x11.5)
FBGA(8x12.5)
FBGA(8.5x12.5)
FBGA(9x10.5)
FBGA(9x10.6)
FBGA(9x11.1)
FBGA(9x11.5)
FBGA(9.4x11.1)
FBGA(10x11)
FBGA(10x12)
FBGA(10x12.5)
FBGA(10.5x12)

Socket life

• Mechanical life/times: 50,000 cycles AllSOCKET
• Mechanical life/times: Few similar products to compare

Material & Specifics:

Structure: Opentop

Socket Body: PEI

Contacts: Beryllium Copper Alloy

Contact Plating: Gold over nickel

Operation Force: Max 2.0kg

Contact Resistance: Max 50 mohm

Insulation Resistance: 1,000 mohm min. at DC 500V

Dielectric withstanding voltage For 1 Minute at AC 700V

Current: Max 2A

Operation Temperature: -55 ~ +175 Celsius degree

Operation Life: 50,000 cycles(Mechanical)

Use method:

Assemble to be an adapter

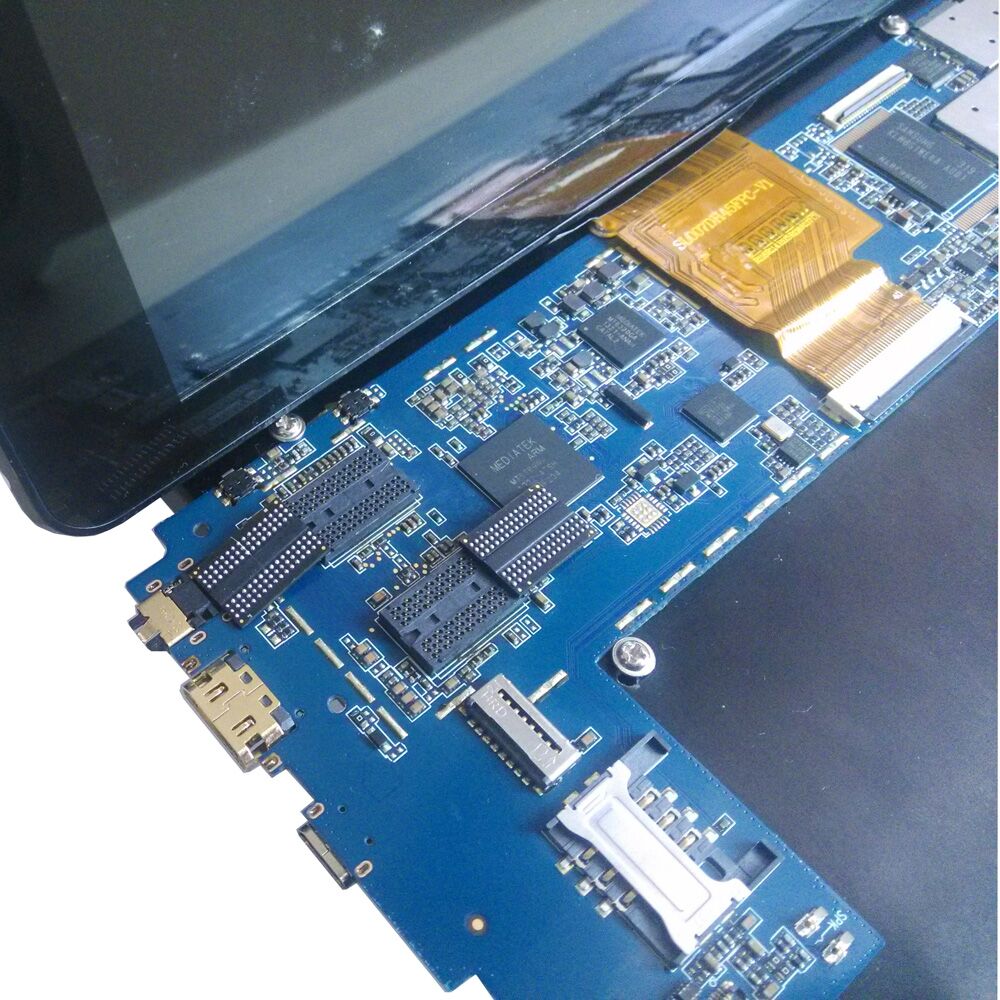

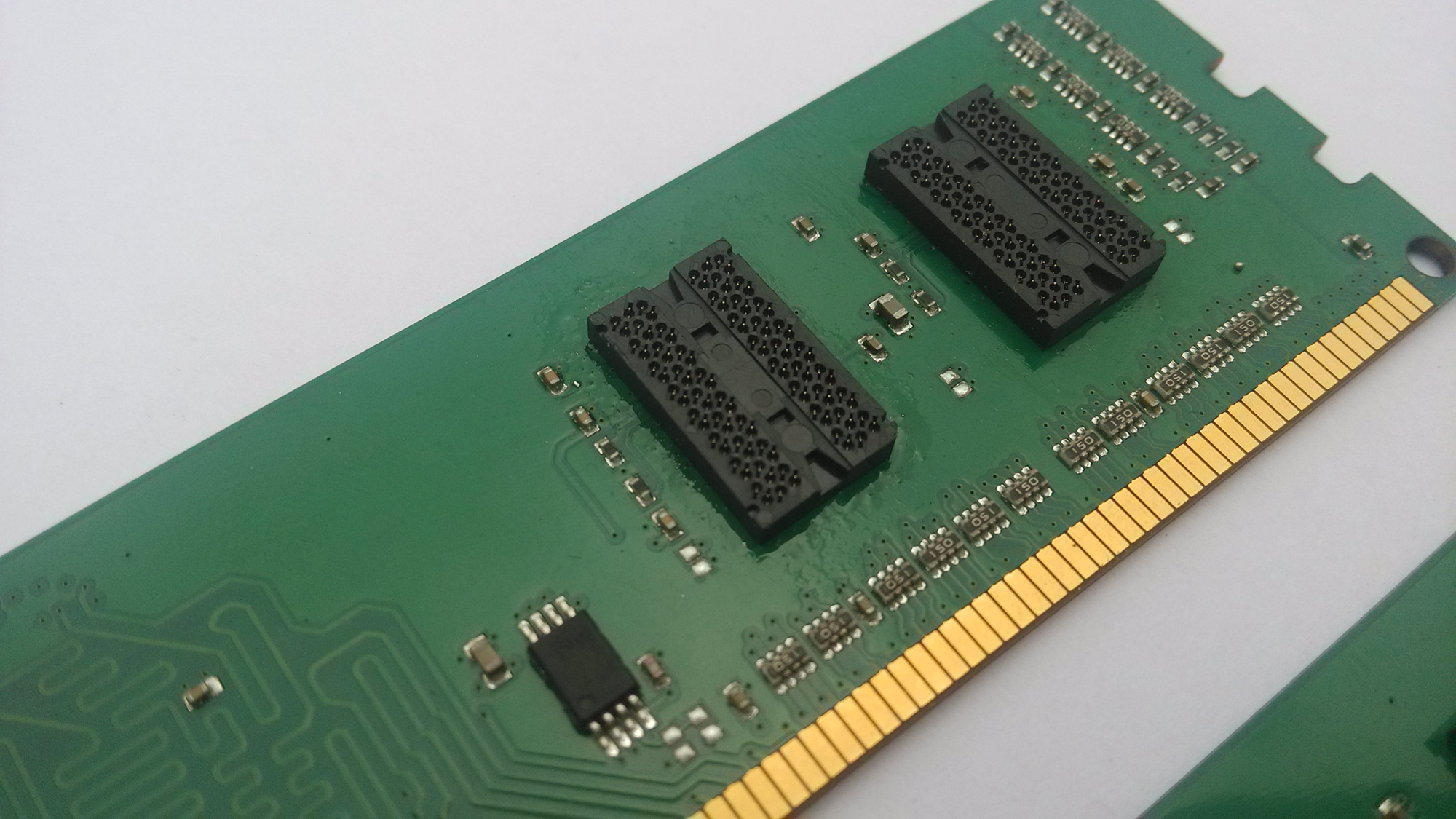

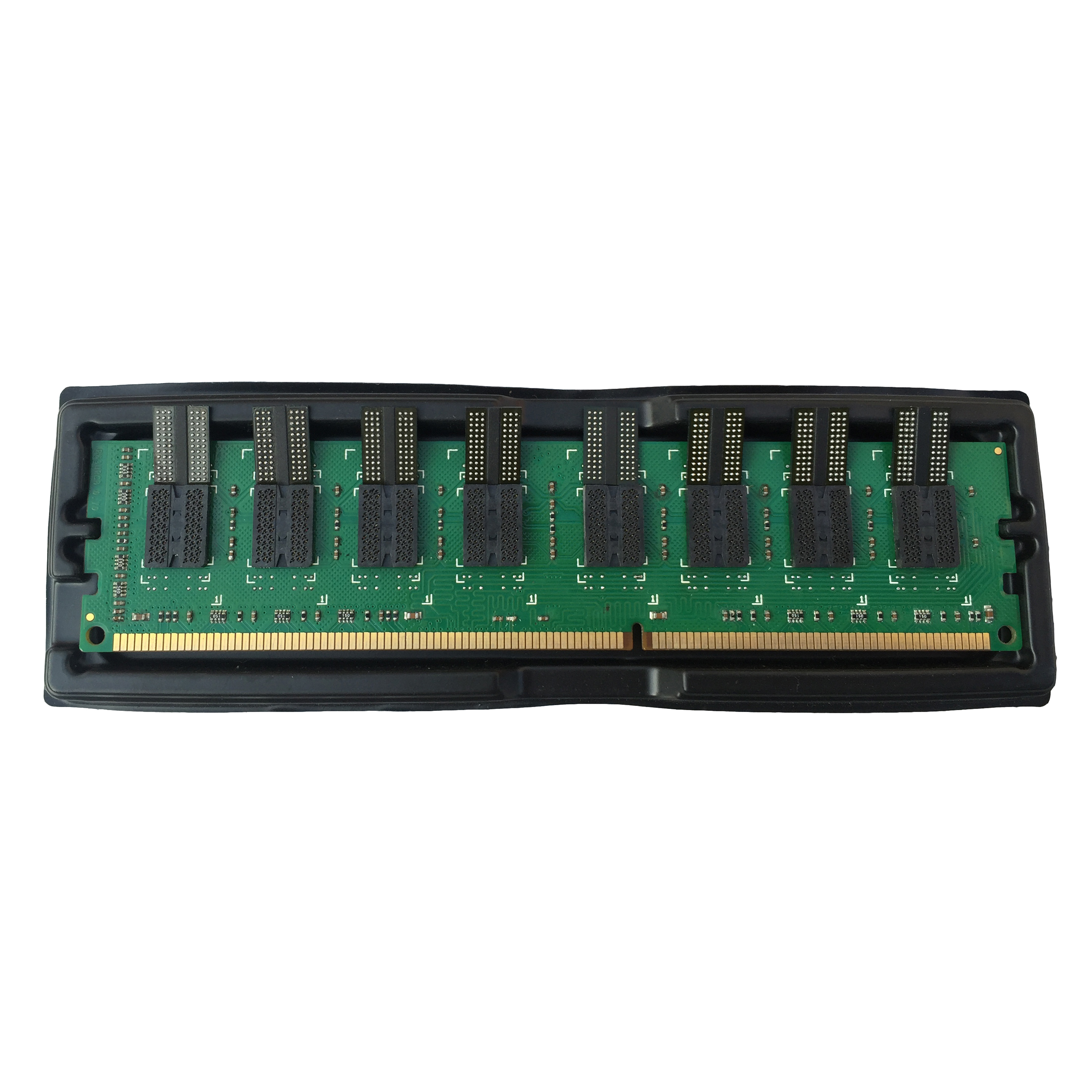

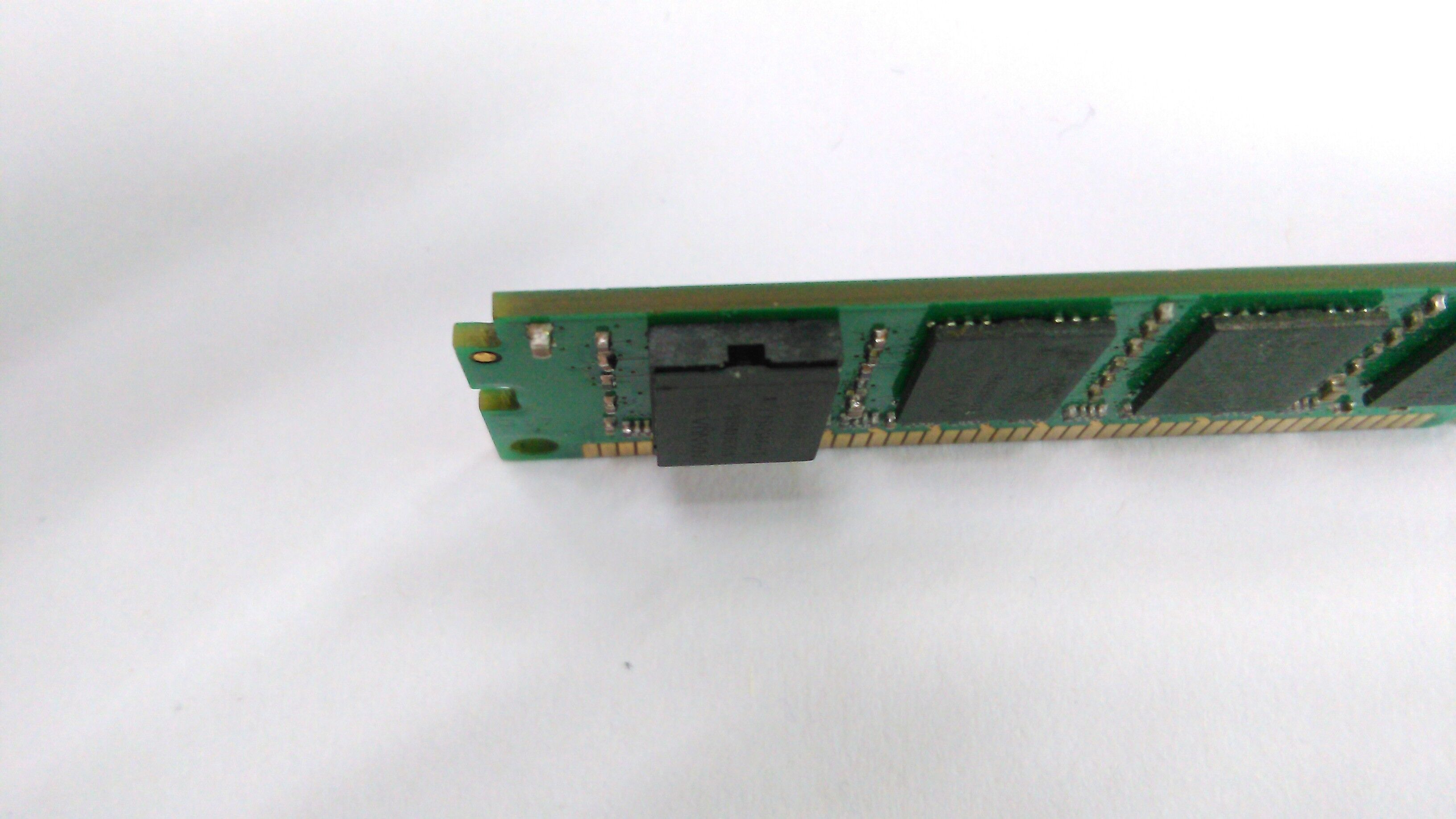

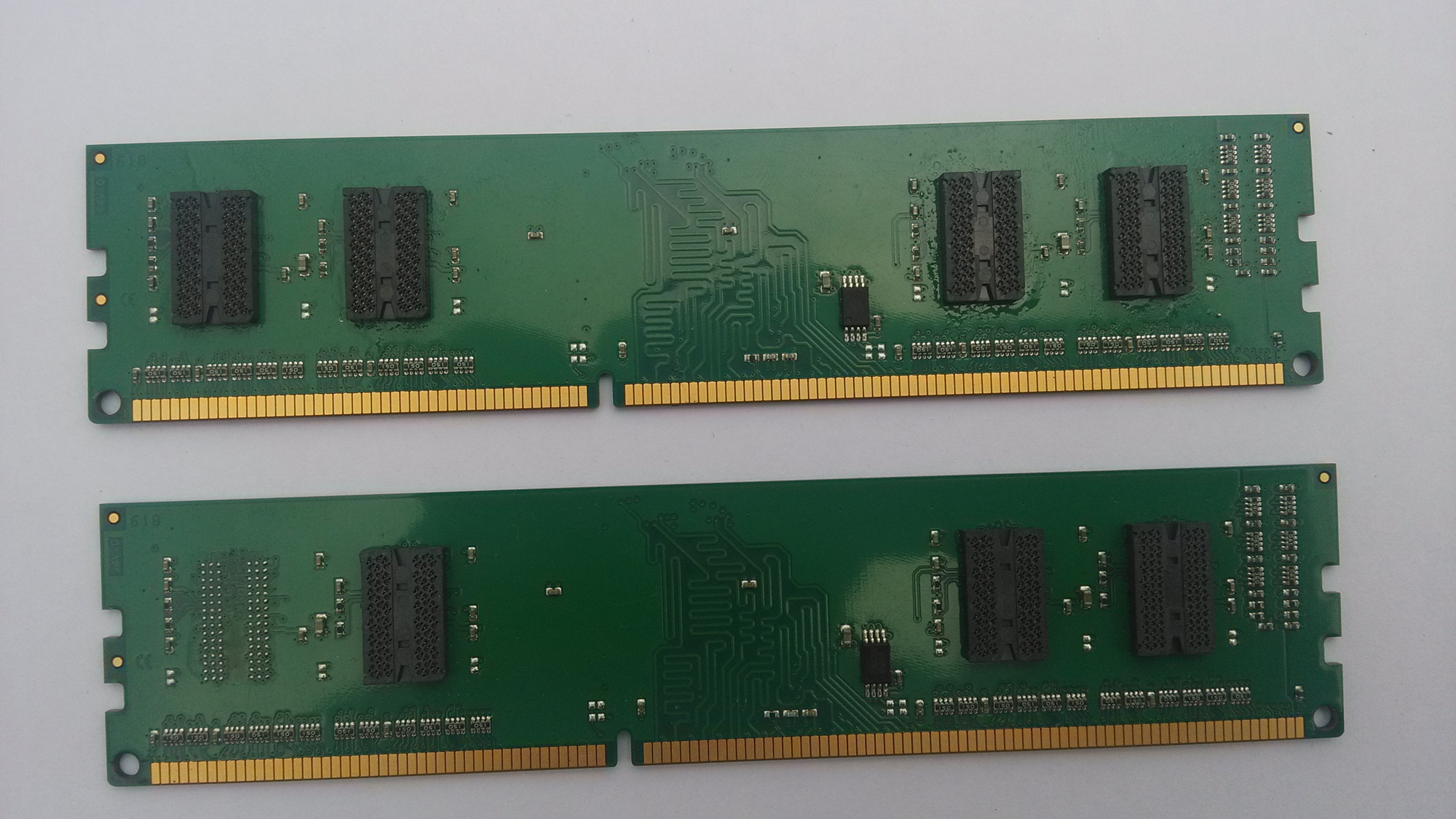

Assemble onto a test board

Assemble and make a test jig

Video:

DDR96 BGA96, BGA/DDR96,

Datasheet:

• S-DDR96-0.8-OPU-01.pdf
• S-DDR96-0.8-OPU-02.pdf

DWG DXF 3D:

• DWG is unavailable now. Please contact sales, thank you.
• DXF is unavailable now. Please contact sales, thank you.
• STP is unavailable now. Please contact sales, thank you.
