Socket	Customizable	Freq.Max	Test	Pitch	Pins	Op.Temp.	Construction	Installation	Mechanical life
ATP-SSOP30(5.7)-0.65	no			0.65	30	-55 ~ +175	Open Top	Plug	20,000 cycles

Supported Package

SSOP30

TSSOP30

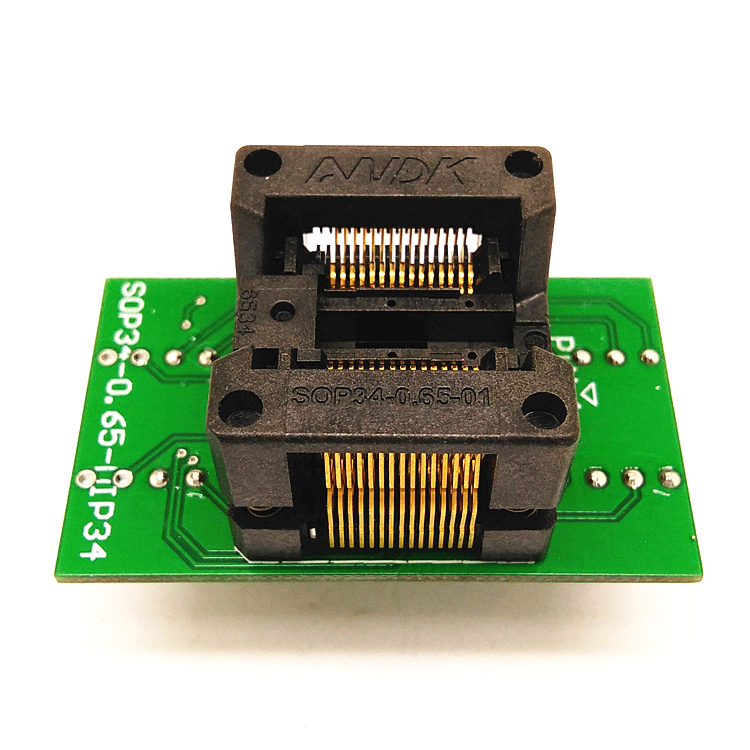

OTS30(34)-0.65-01

Socket life

• Mechanical life/times: 20,000 cycles AllSOCKET
• Mechanical life/times: 15,000 cycles OTS30(34)-0.65-01

Material & Specifics:

Structure: Open Top

Socket Body: PEI/FR4

Contacts: Beryllium Copper Alloy

Contact Plating: Gold over nickel

Operation Force: Max 0.5kg

Contact Resistance: Max 50 mohm

Insulation Resistance: 1,000 mohm min. at DC 500V

Dielectric withstanding voltage For 1 Minute at AC 700V

Current: Max 2A

Operation Temperature: -55 ~ +175 Celsius degree

Operation Life: 20,000 cycles(Mechanical)

Use method:

Assemble to be an adapter

Assemble onto a test board

Assemble and make a test jig
