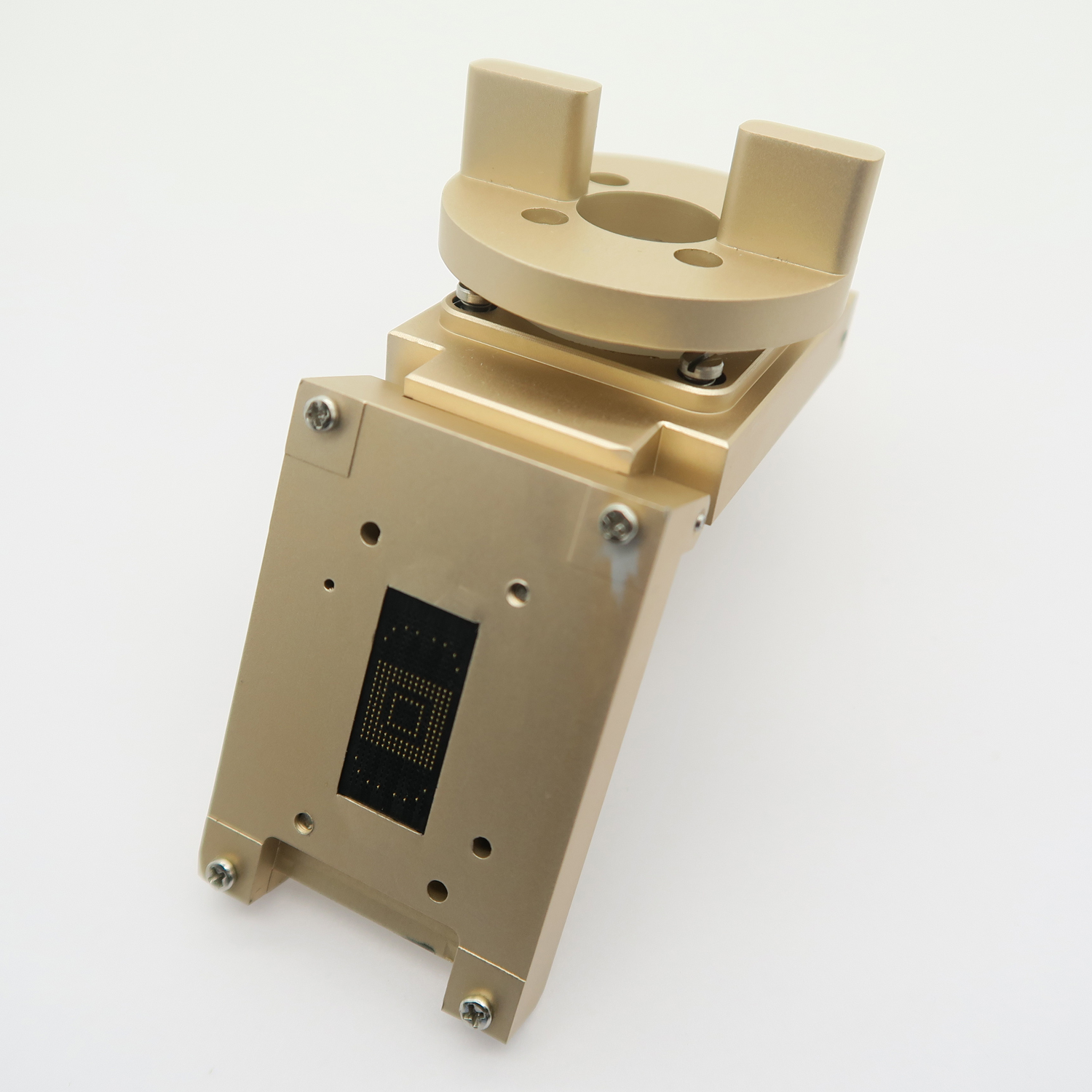

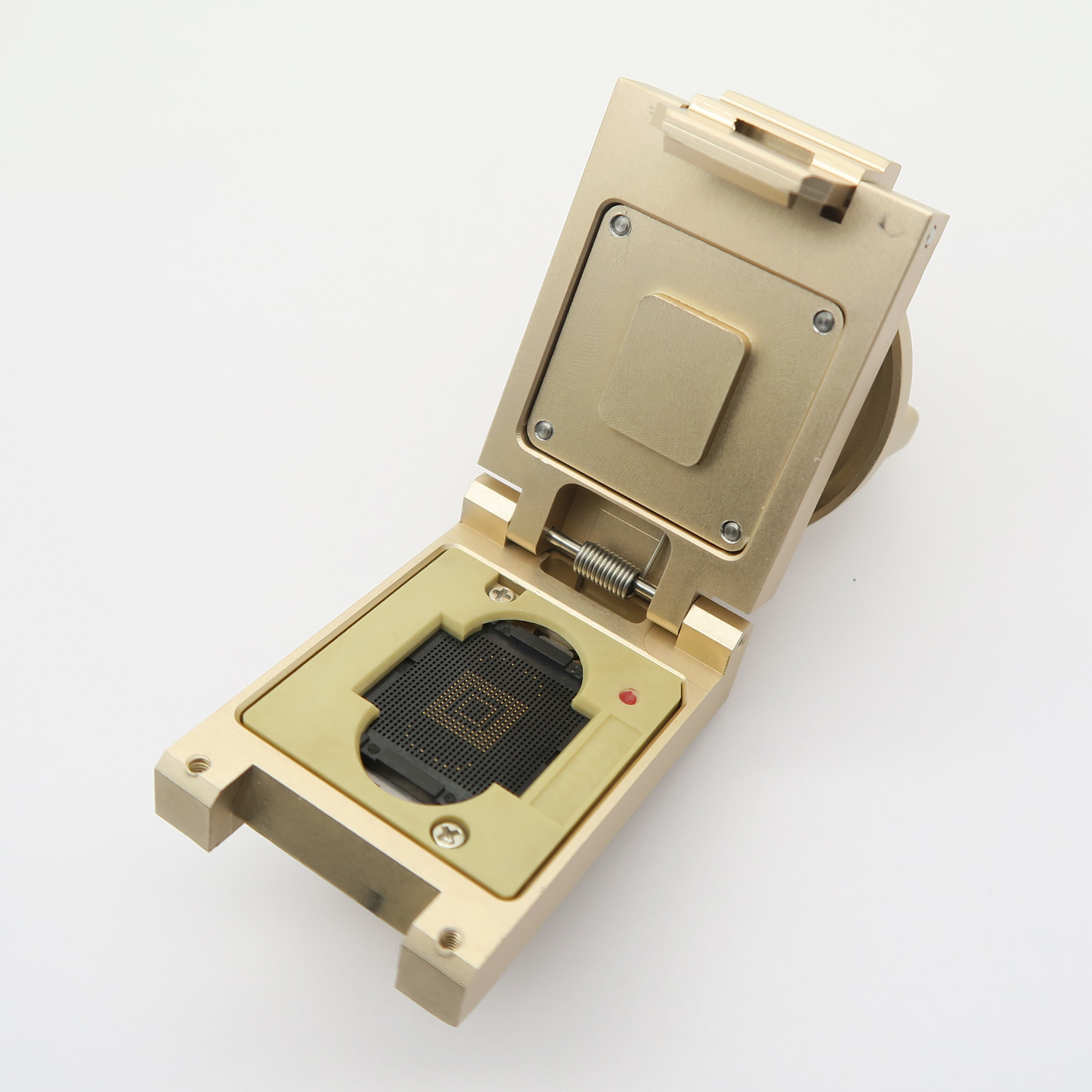

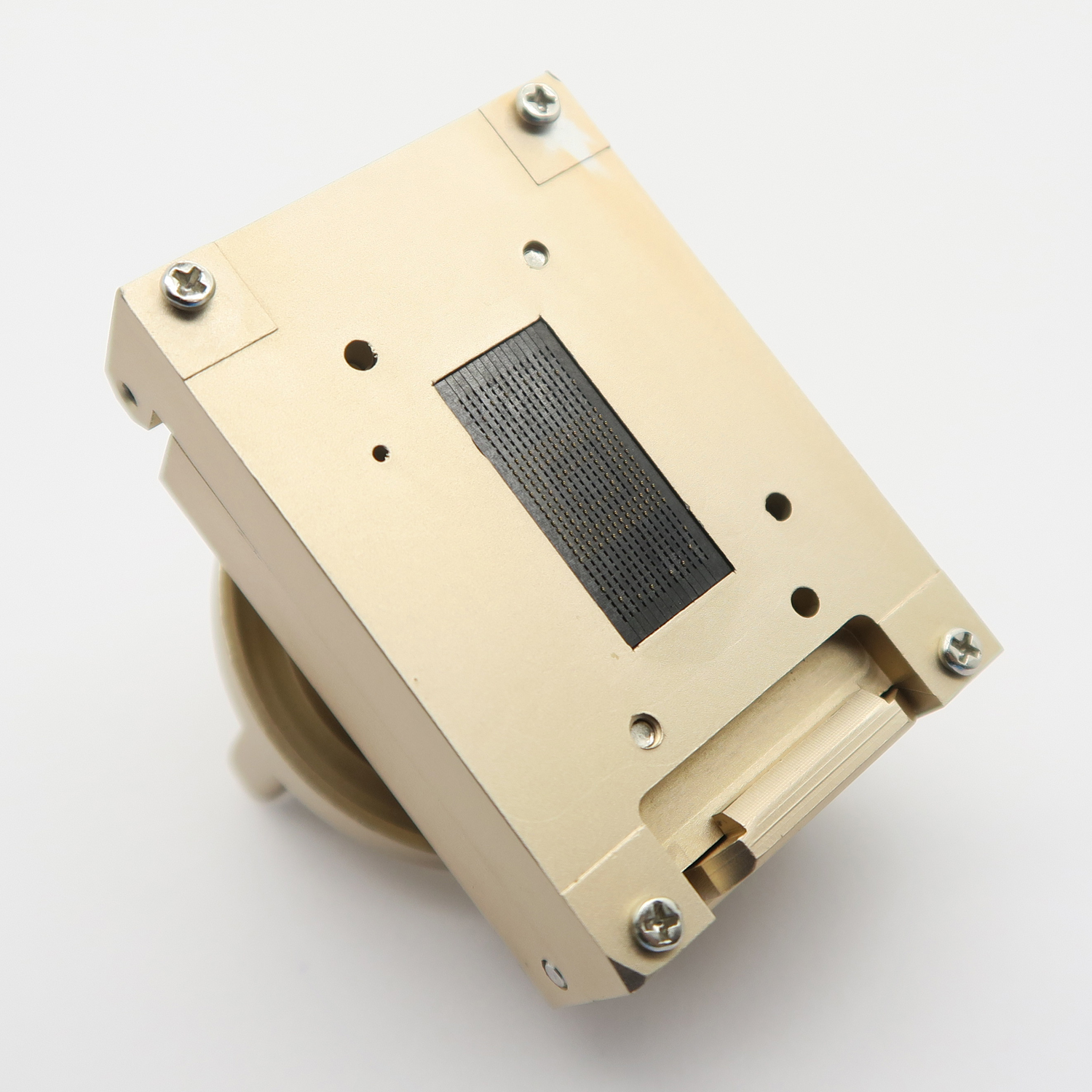

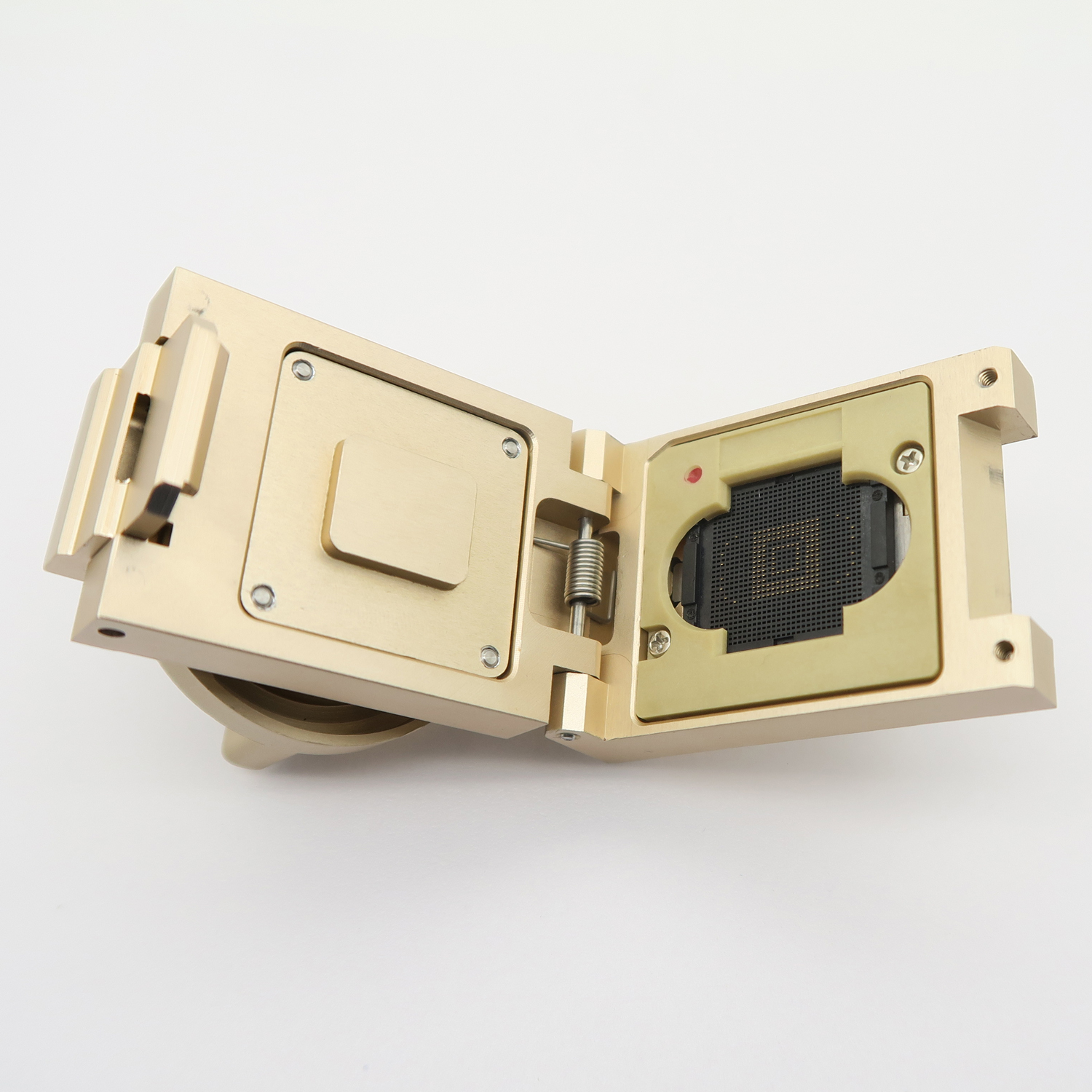

Socket	Customizable	Freq.Max	Test	Pitch	Pins	Op.Temp.	Construction	Installation	Mechanical life
SCL-CPU-xxx	yes	5Ghz	CPU	0.3~1.27	2-2116	-55 ~ +175	Clamshell	Screw	50,000 cycles
1

Supported Package

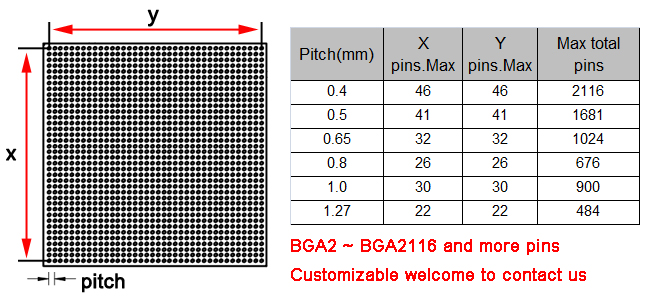

BGA2~BGA2116

BGA2
BGA3
BGA4
BGA5
...
...
BGA2116

Socket life

• Mechanical life/times: 50,000 cycles AllSOCKET
• Mechanical life/times: Few similar products to compare

Material & Specifics:

Structure: Clamshell

Socket Body: Alloy

Contacts: Beryllium Copper Alloy

Contact Plating: Gold over nickel

Operation Force: Max 2.0kg

Contact Resistance: Max 50 mohm

Insulation Resistance: 1,000 mohm min. at DC 500V

Dielectric withstanding voltage For 1 Minute at AC 700V

Current: Max 2A

Operation Temperature: -55 ~ +175 Celsius degree

Operation Life: 50,000 cycles(Mechanical)
