Part Number	Support Chips	Optional Sizes	Use method	Chip's bottom-Check and choose the right reader
DS3000-USB3.0-eMMC169+153	eMMC169/153	9x11, 11.5x13 11x10, 12x16 12x18, 14x18	Clamshell USB
DS3000-USB3.0-eMCP162+186	eMCP162/186	11.5x13 12x16 12x18 14x18	Clamshell USB
DS3000-USB3.0-eMCP221	eMCP221	11.5x13 12x16 12x18 14x18	Clamshell USB
DS3000-USB3.0-eMCP529	eMCP529	15x15	Clamshell USB
DS3000-USB3.0-eMMC100	eMMC100	12x18 14x18
DS3000-xxx-xxx	S6/S7... iphone x
Many Android phones use BGA/eMCP529. If you are not sure about it, please contact us. Blackberry Coolpad Disney Dopod Google HTC HUAWEI i-mate Koobee K-Touch Lenovo LG MEIZU MI Microsoft Mobiado Motorola NEC Nokia O2 OPPO Palm Panisonic Philips Samsung Sanyo Sharp Siemens Sony TCL Toshiba Vertu Vivo ZTE

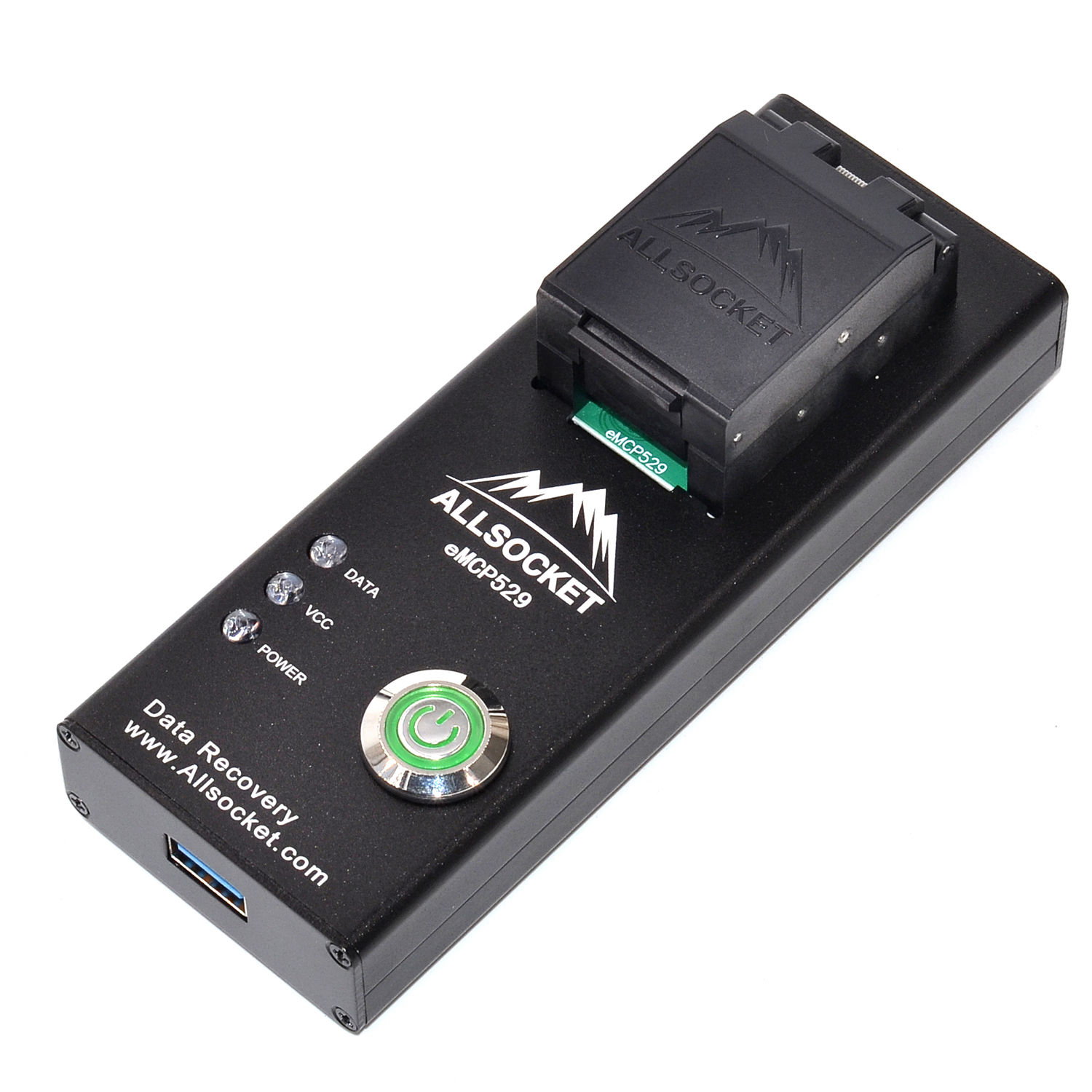

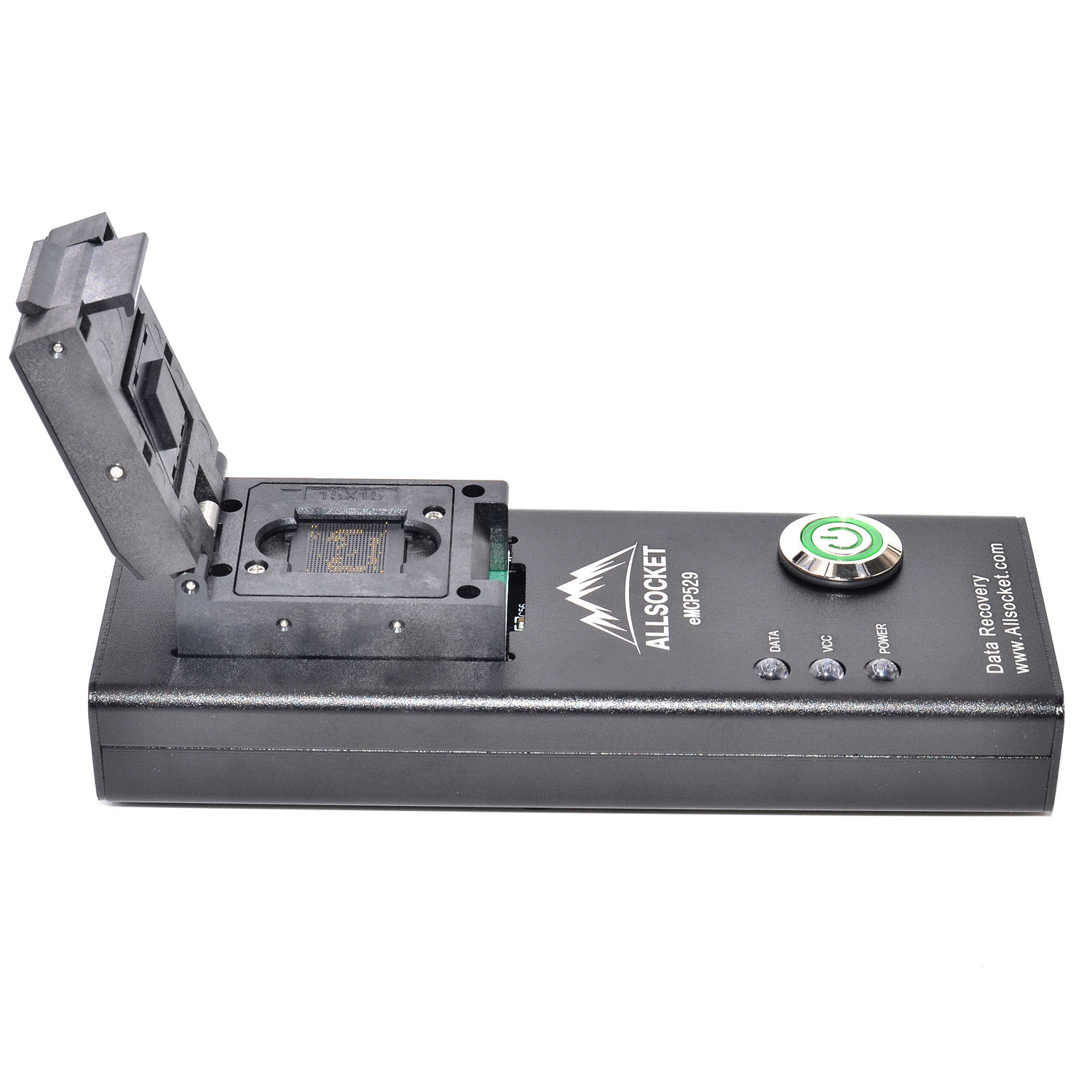

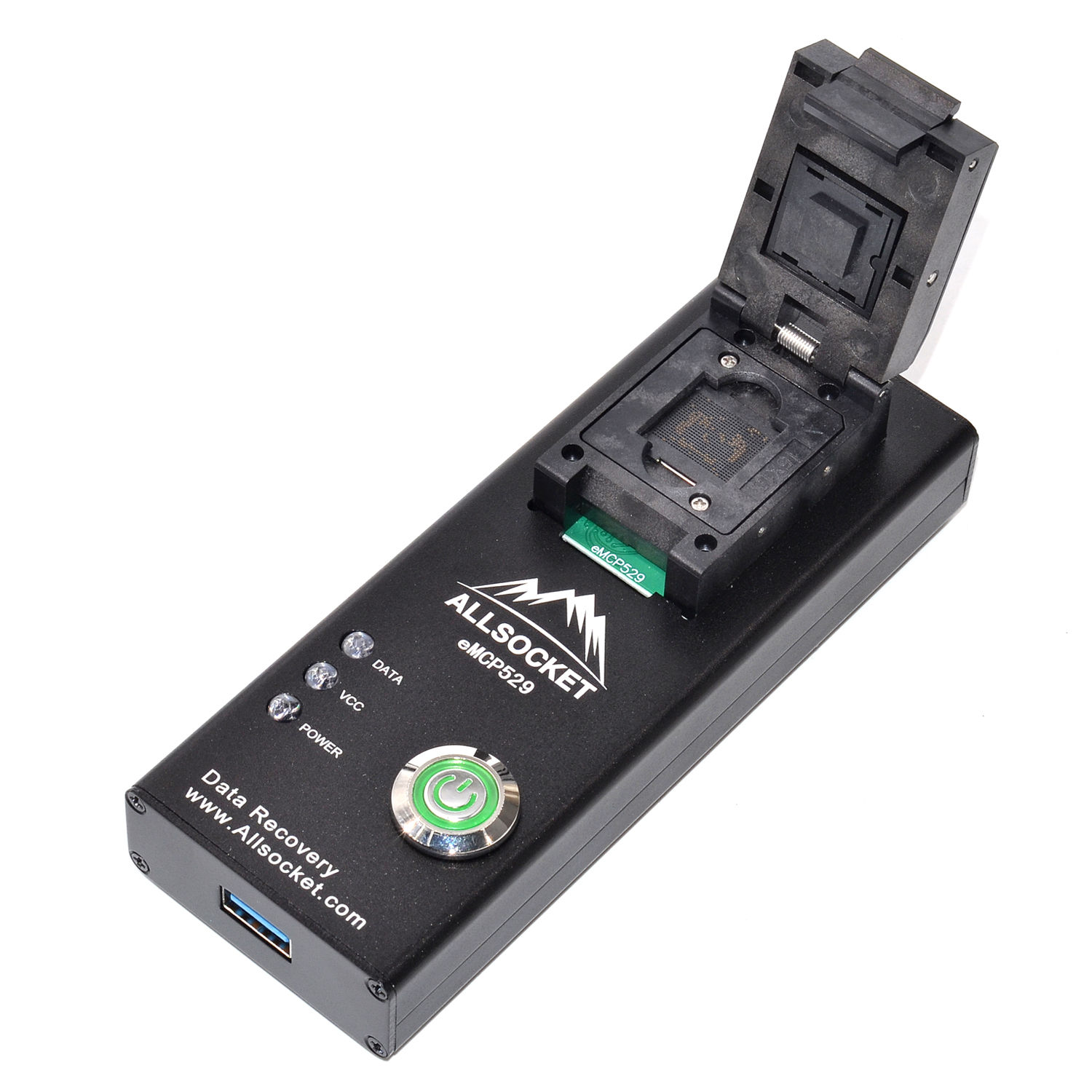

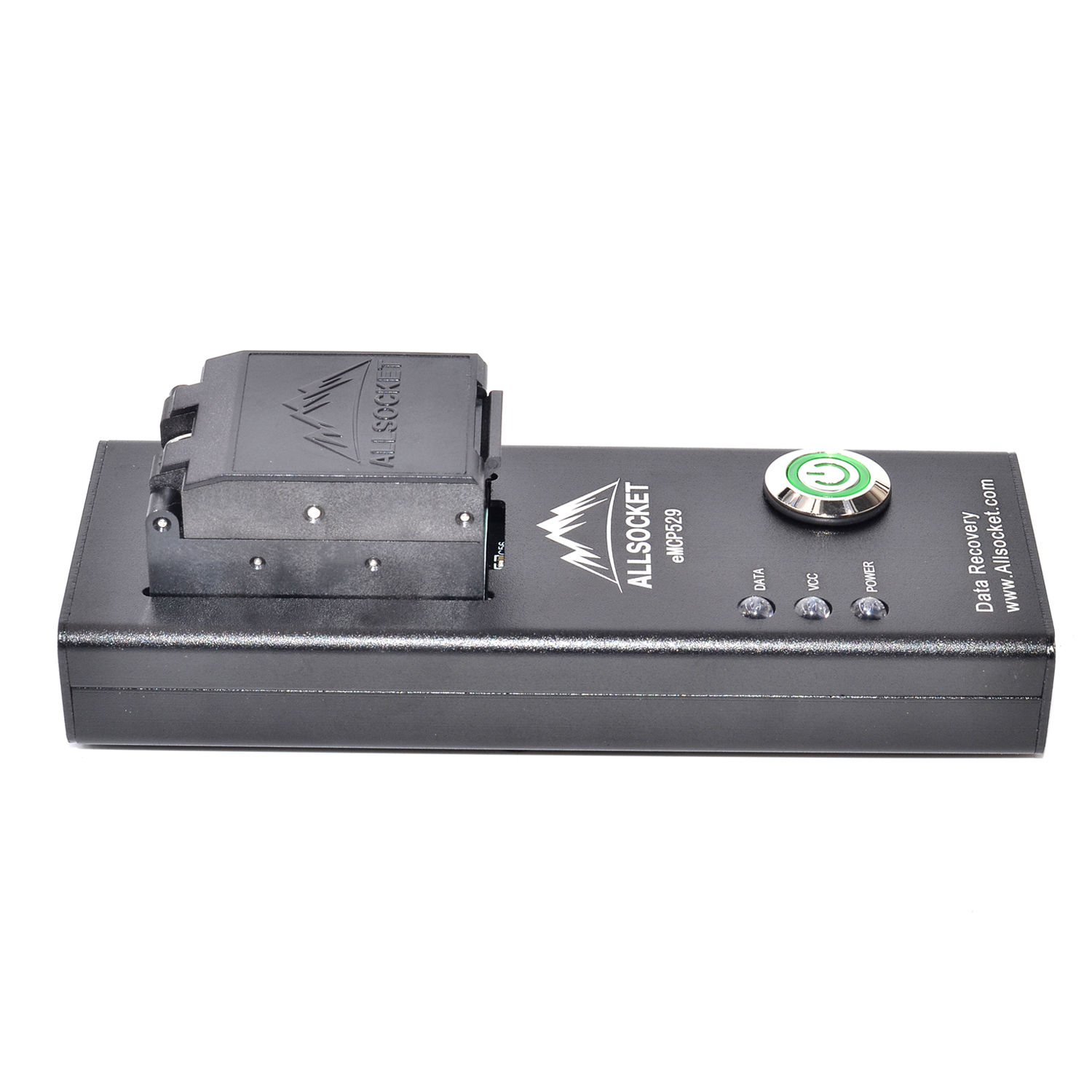

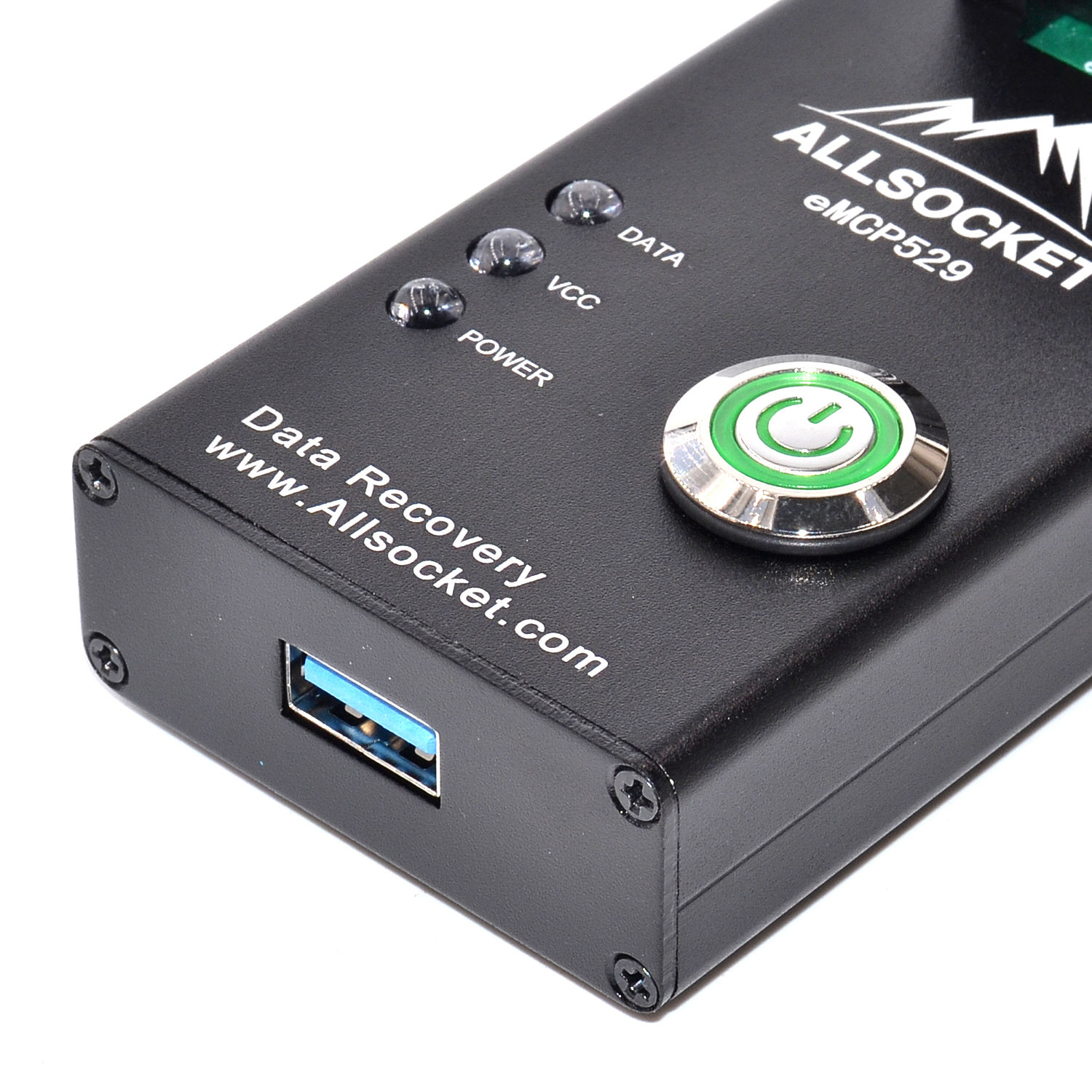

DS3000-USB3.0-emcp529, eMCP529 reader, Data Reader

• If you want to save or recover personal data(contacts, messages, SMS, photos, picture, videos, app data, etc) from a broken/damaged/dead/cracked android smartphone.

• If you want to program eMCP.
  If you want to clone eMCP.
  If you want to test eMCP.
• It helps you! Just like a U disk!

  It is designed for test, debug, validation, data recovery and programming of eMCP chips .
  We provide a simple software which can check the capacity, read, write and verify.

Support - If you don't know if it support your android phone, please tell us its type.

• 1) Support package: BGA/eMCP529
  2) Support : thickness= 0.8~1.5mm, pin pitch= 0.5mm
  3) All smartphone which use BGA/eMCP529
  4) Support all brand eMCP , such as Samsung, Hynix, Sandisk, Toshiba, Intel, Kingston etc
  5) Support hot plug, eMCP chip can be directly connected to PC with the USB reader
  6) Identify, reading, accessing and writting data
  7) Well designed to connect flat bottom, solder ball, even if no ball
