Socket	Customizable	Freq.Max	Test	Pitch	Pins	Op.Temp.	Construction	Installation	Mechanical life
STP-QFP176-0.5	no		MCU	0.5	176	-55 ~ +175	Opentop	Soldering	15,000 cycles
1 2

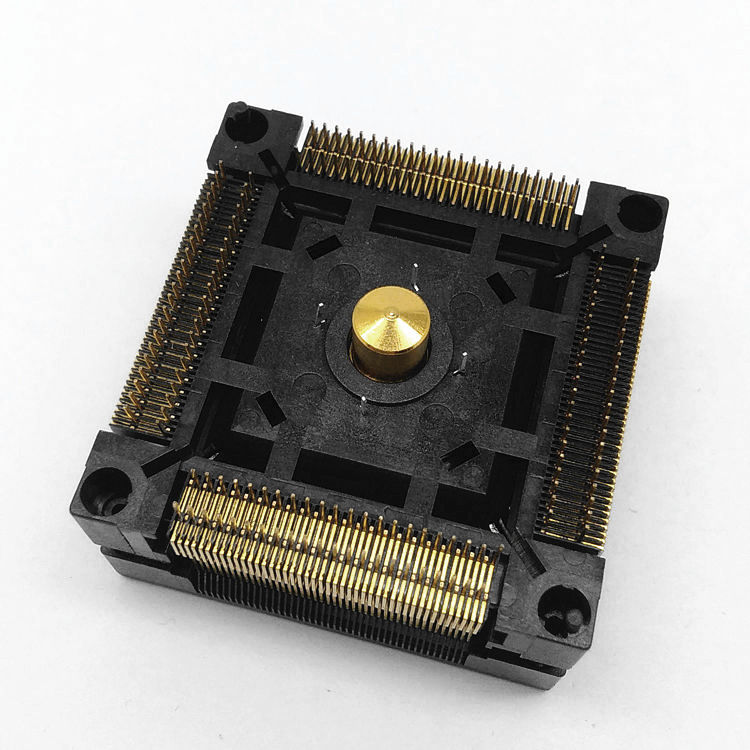

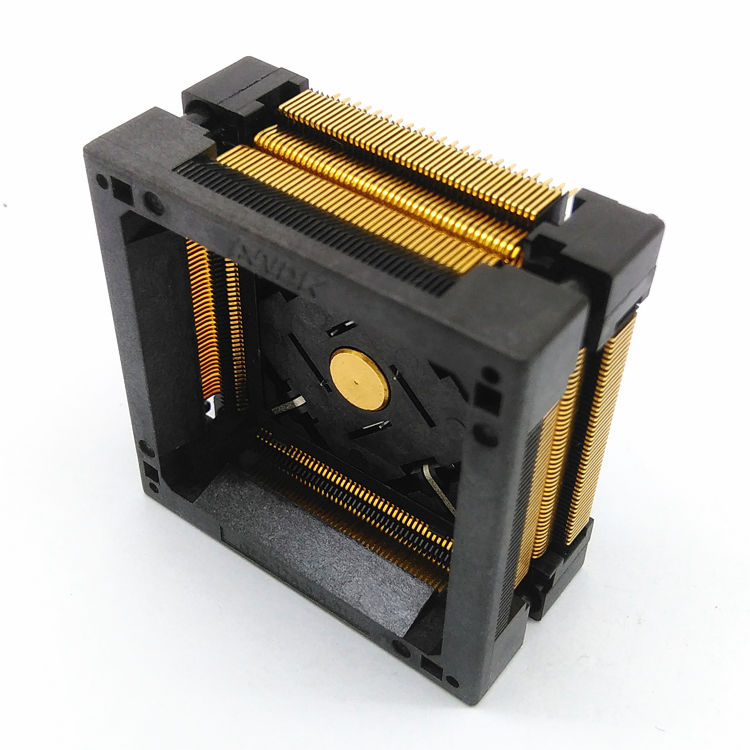

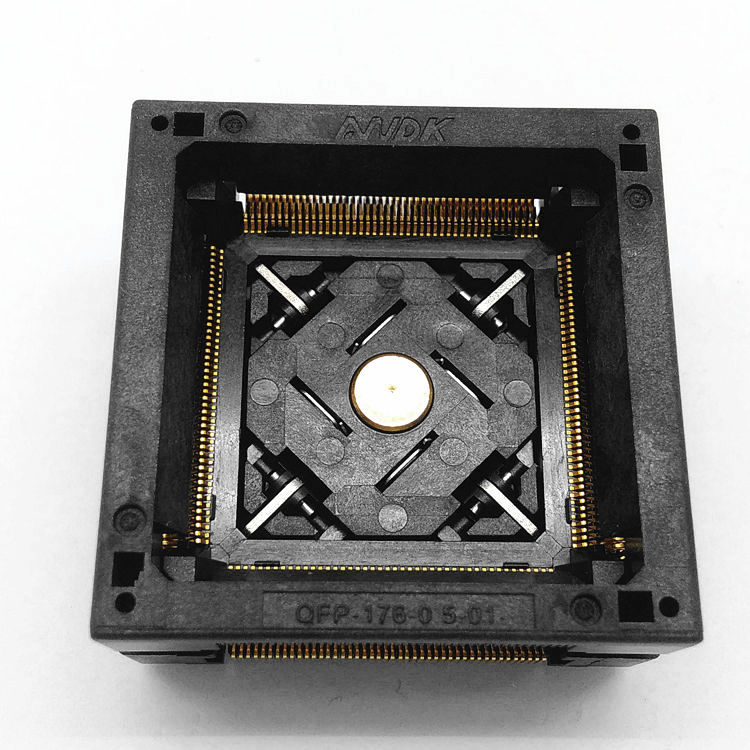

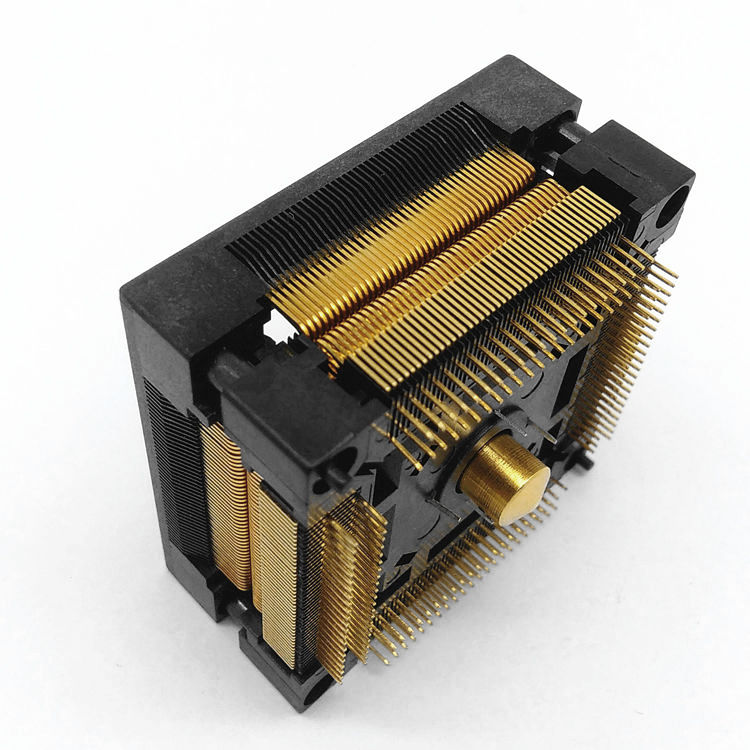

Supported Package

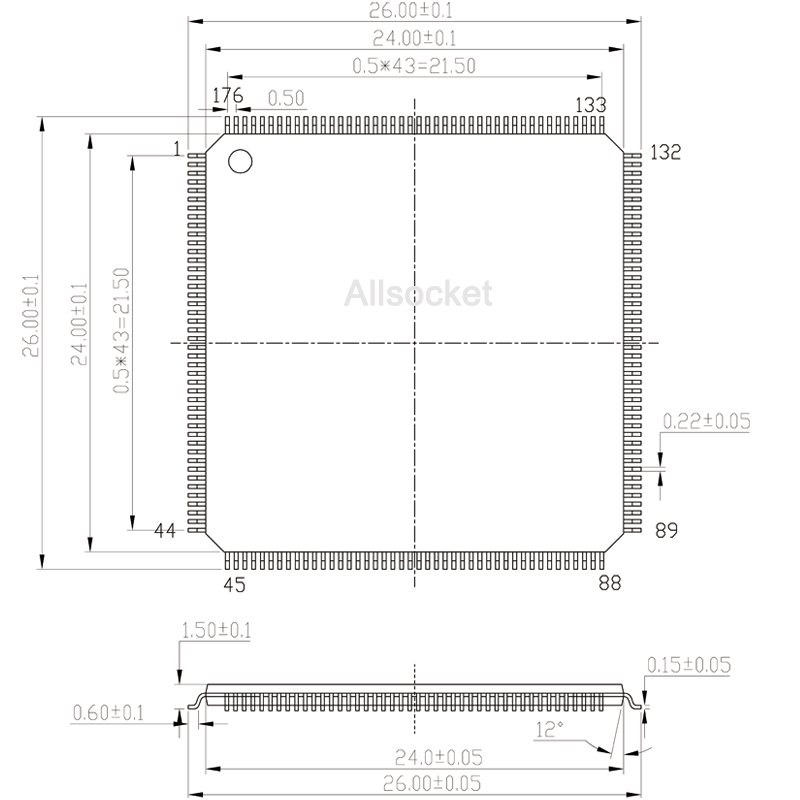

QFP176

TQFP176

LQFP176

Socket life

• Mechanical life/times: 15,000 cycles AllSOCKET
• Mechanical life/times: 15,000 cycles OTQ-176-0.5-0.6-00

Material & Specifics:

Structure: Opentop

Socket Body: PEI

Contacts: Beryllium Copper Alloy

Contact Plating: Gold over nickel

Operation Force: Max 2.0kg

Contact Resistance: Max 50 mohm

Insulation Resistance: 1,000 mohm min. at DC 500V

Dielectric withstanding voltage For 1 Minute at AC 700V

Current: Max 2A

Operation Temperature: -55 ~ +175 Celsius degree

Operation Life: 15,000 cycles(Mechanical)

Use method:

Assemble to be an adapter

Assemble onto a test board

Assemble and make a test jig

Video:

QFP176-0.5-STP, QFP176,

Datasheet:

• STP-QFP176-0.5.pdf

DWG DXF 3D:

• DWG is unavailable now. Please contact sales, thank you.
• DXF is unavailable now. Please contact sales, thank you.
• STP is unavailable now. Please contact sales, thank you.
