Socket	Customizable	Freq.Max	Test	Pitch	Pins	Op.Temp.	Construction	Installation	Mechanical life
SCL-QFN104(12x12)-0.4	yes		MCU	0.4	104	-55 ~ +175	Clamshell	Soldering	15,000 cycles
1 2

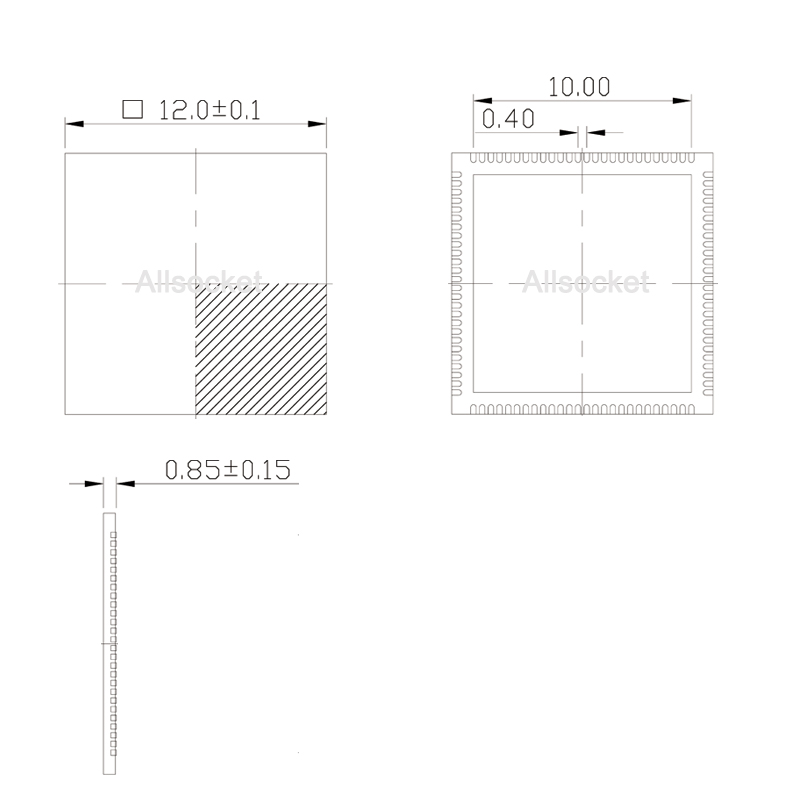

Supported Package

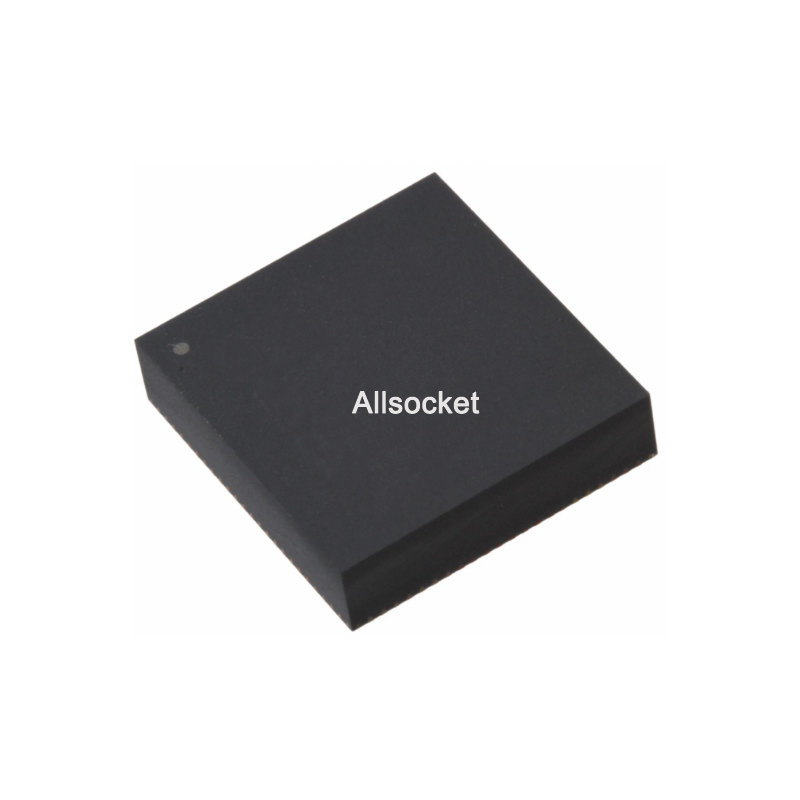

QFN104

MLF104

WLCSP104

Socket life

• Mechanical life/times: 15,000 cycles AllSOCKET
• Mechanical life/times: 15,000 cycles NP506-104-047-SC-G

Material & Specifics:

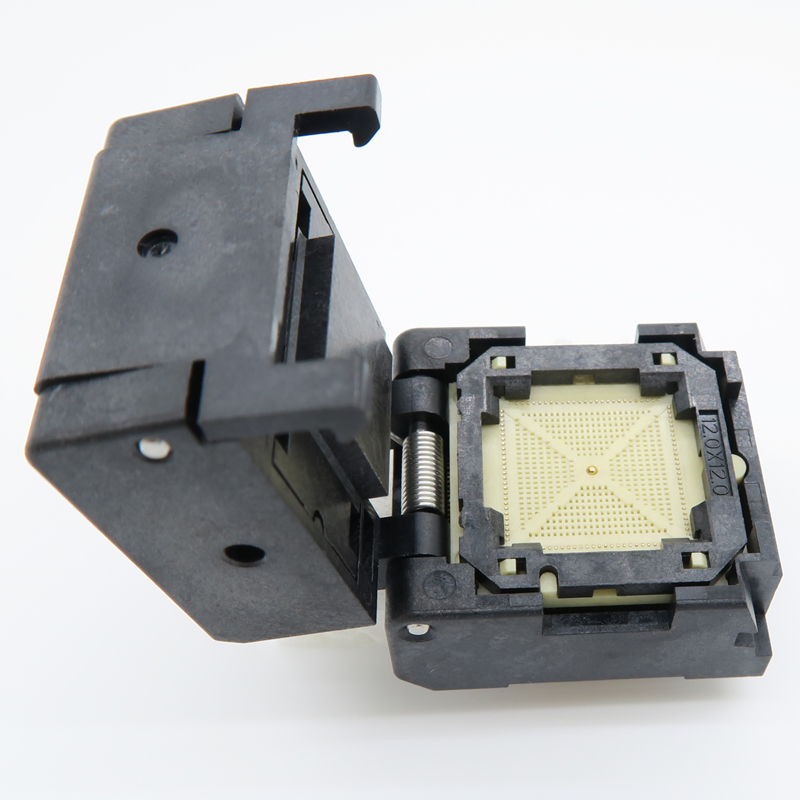

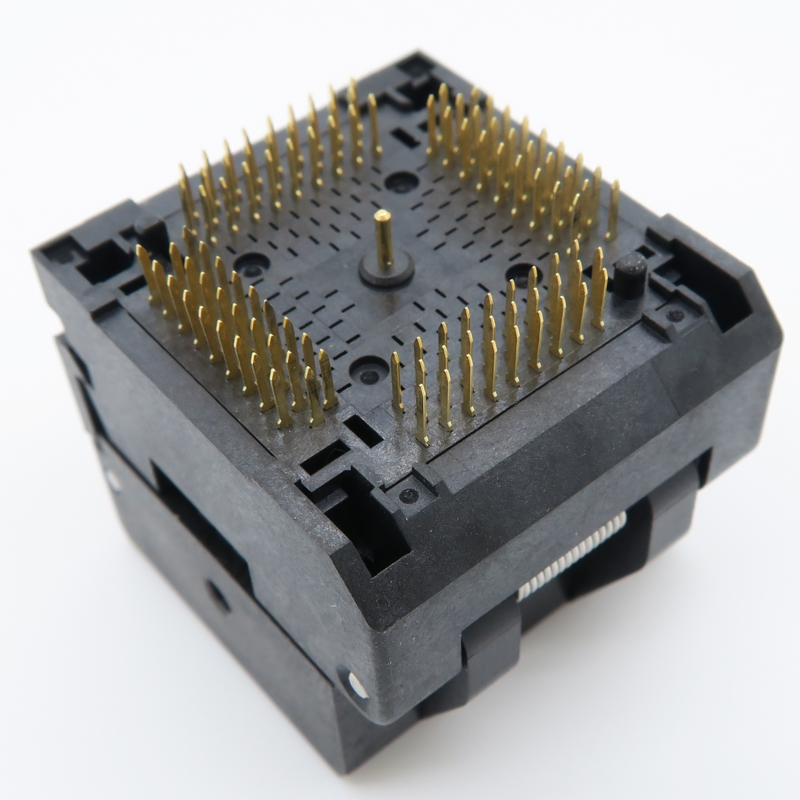

Structure: Clamshell

Socket Body: PEI

Contacts: Beryllium Copper Alloy

Contact Plating: Gold over nickel

Operation Force: Max 2.0kg

Contact Resistance: Max 50 mohm

Insulation Resistance: 1,000 mohm min. at DC 500V

Dielectric withstanding voltage For 1 Minute at AC 700V

Current: Max 1A

Operation Temperature: -55 ~ +175 Celsius degree

Operation Life: 15,000 cycles(Mechanical)

Use method:

Assemble to be an adapter

Assemble onto a test board

Assemble and make a test jig

Video:

QFN104(12x12)-0.4-SCL, QFN104,

Datasheet:

• Sorry, this datasheet is unavailable now. Please contact sales, thank you.

DWG DXF 3D:

• DWG is unavailable now. Please contact sales, thank you.
• DXF is unavailable now. Please contact sales, thank you.
• STP is unavailable now. Please contact sales, thank you.
