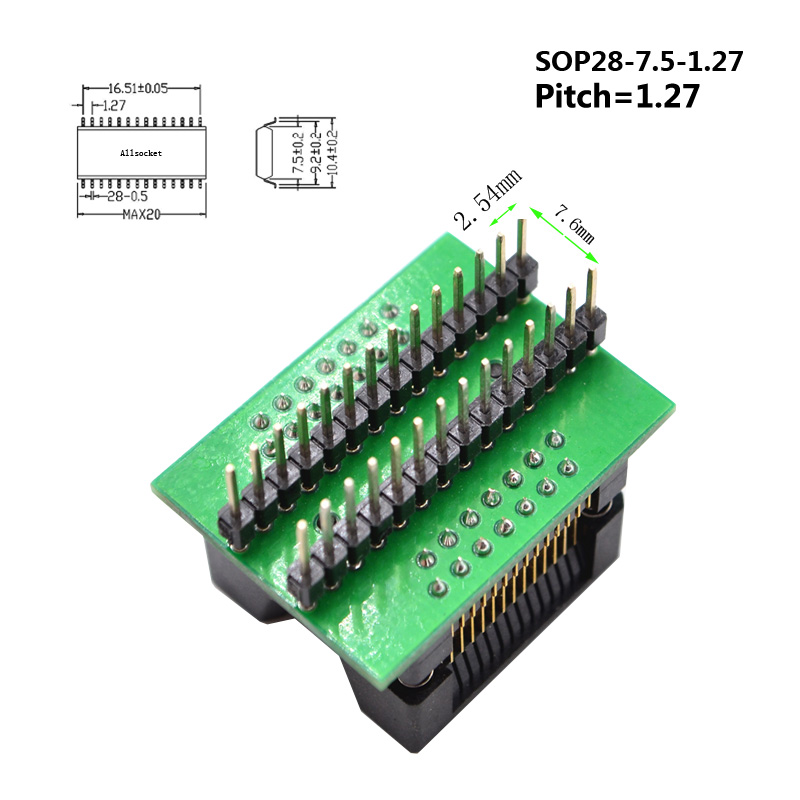

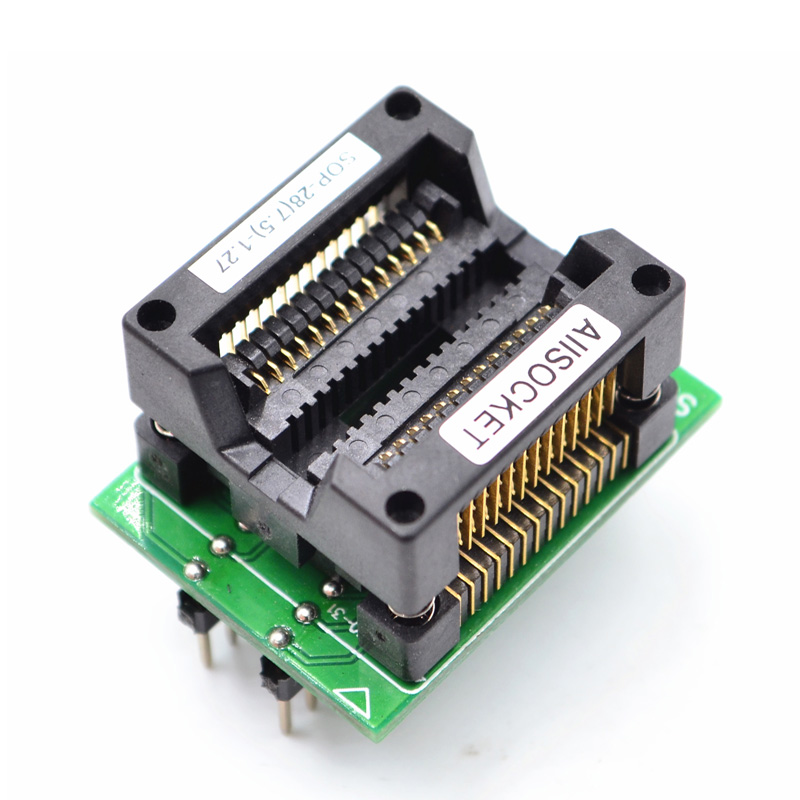

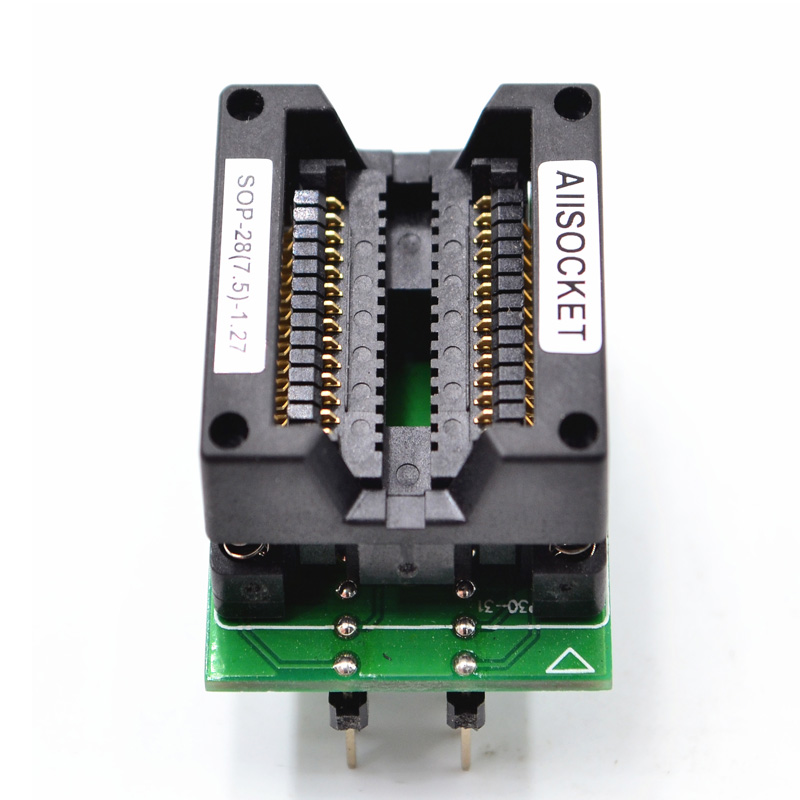

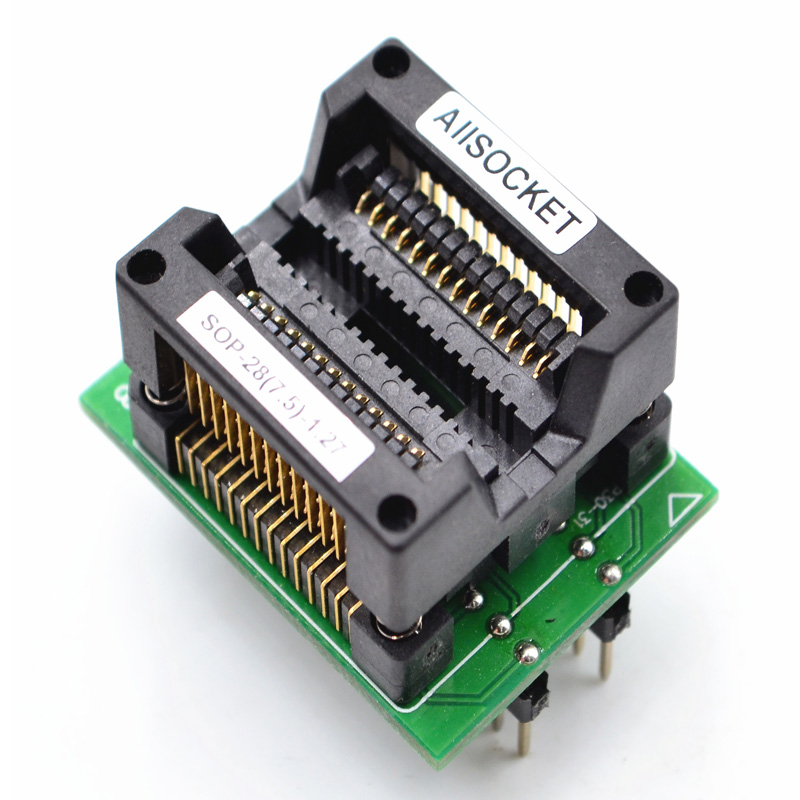

Socket	Customizable	Freq.Max	Test	Pitch	Pins	Op.Temp.	Construction	Installation	Mechanical life
ATP-SOP-28(7.5)-1.27	no			1.27	28	-55 ~ +175	Open Top	Plug	20,000 cycles

Supported Package

SOP28

SOIC28

SO28

OTS28(28)-1.27-04

Socket life

• Mechanical life/times: 20,000 cycles AllSOCKET
• Mechanical life/times: 15,000 cycles OTS28(28)-1.27-04

Material & Specifics:

Structure: Open Top

Socket Body: PEI/FR4

Contacts: Beryllium Copper Alloy

Contact Plating: Gold over nickel

Operation Force: Max 0.5kg

Contact Resistance: Max 50 mohm

Insulation Resistance: 1,000 mohm min. at DC 500V

Dielectric withstanding voltage For 1 Minute at AC 700V

Current: Max 2A

Operation Temperature: -55 ~ +175 Celsius degree

Operation Life: 20,000 cycles(Mechanical)

Use method:

Assemble to be an adapter

Assemble onto a test board

Assemble and make a test jig

Video:

SOP28(7.5)-1.27, SOP28,

Datasheet:

• Sorry, this datasheet is unavailable now. Please contact sales, thank you.

DWG DXF 3D:

• DWG is unavailable now. Please contact sales, thank you.
• DXF is unavailable now. Please contact sales, thank you.
• STP is unavailable now. Please contact sales, thank you.
